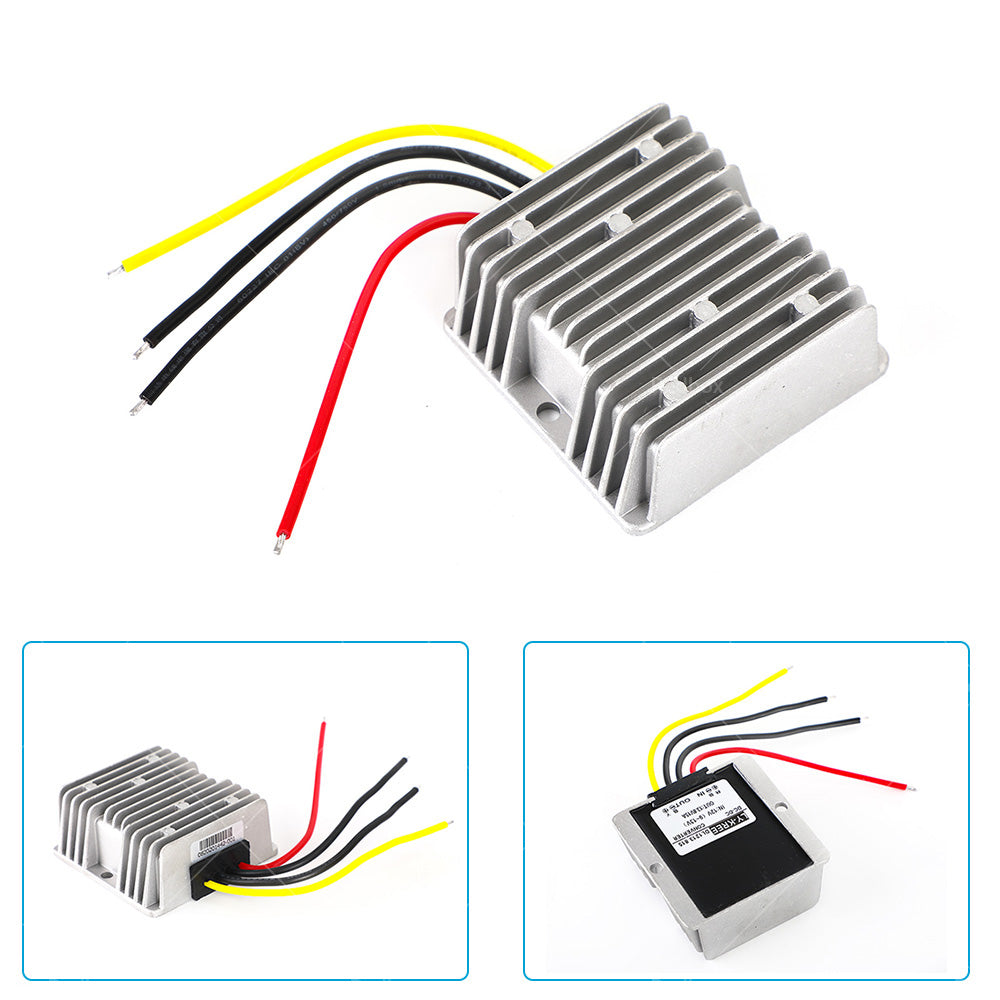

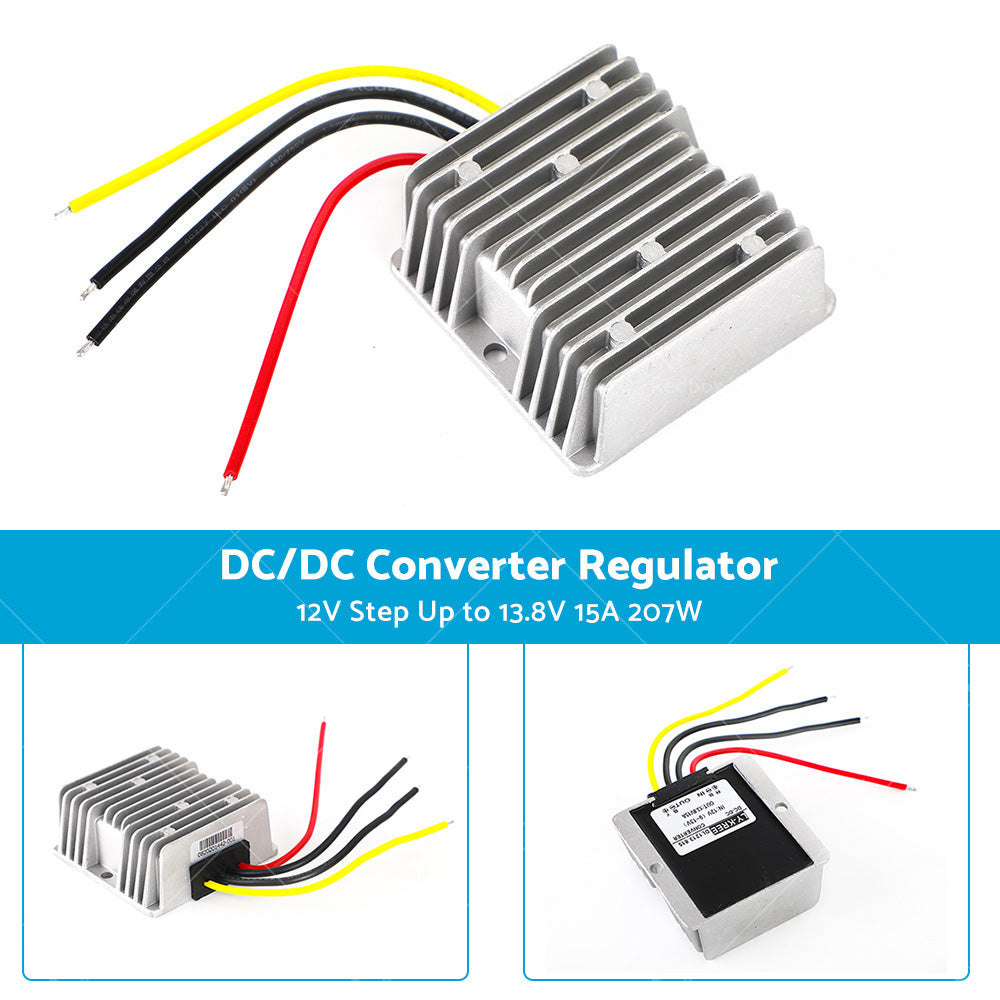

Waterproof DC or DC Converter Regulator 12V Step Up to 13.8V 15A 207W

Description

Widely used: car alarms, radio, intercom, electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans,solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, and industrial electrical equipment, etc.

Features

High quality thermal silica potting, waterproof, dust-proof, shockproof effect

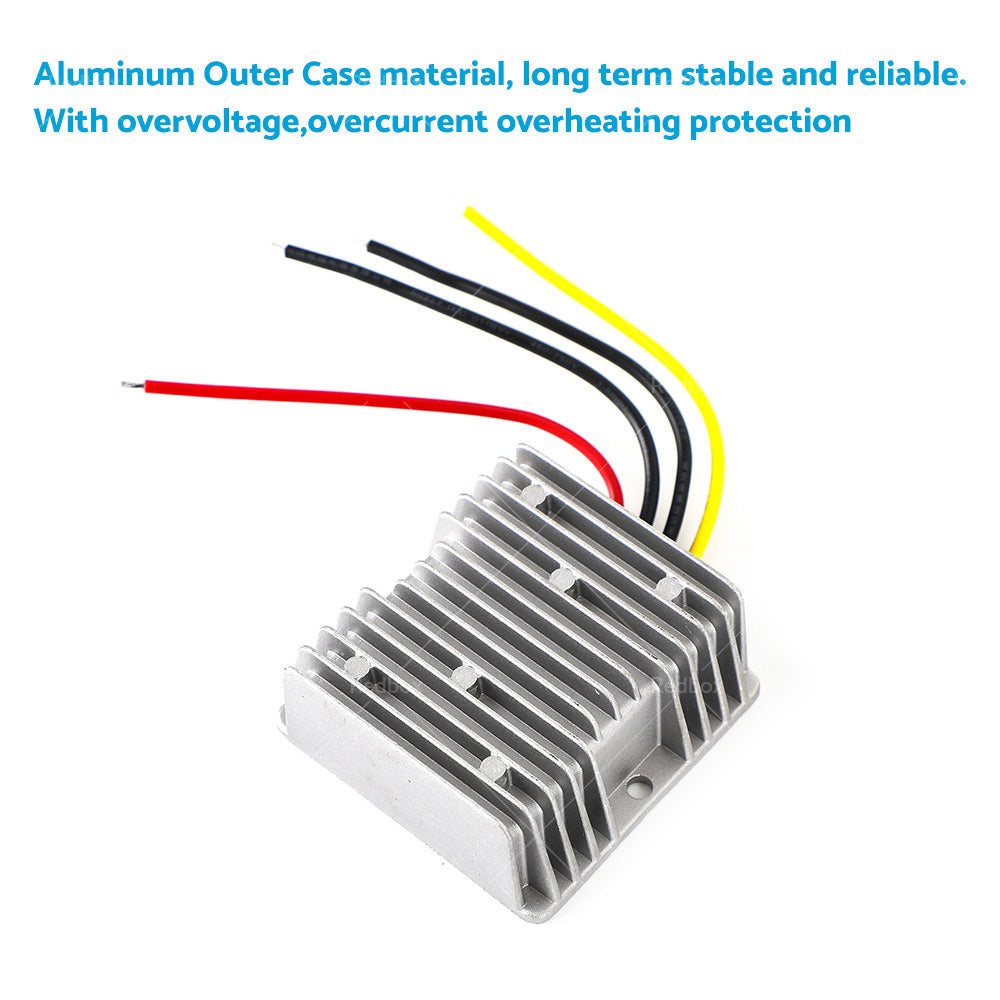

Aluminum Outer Case material, long term stable and reliable.
With overvoltage,overcurrent overheating protection
Waterproof, Shockproof Design.

Specifications

Type: DC/DC Converter Regulator

Condition: 100% Brand New

Shell Material: Die-cast aluminum alloy

Input voltage: 12V DC

Input voltage range: 9 ~ 13V DC

Output voltage: 13.8V DC

Output Current: 15A (max), 207W

Operating temperature: -40°C ~ +85°C

Output ripple noise: 80mv

Warranty: 1 year

Installation method: mounting hole

Efficient conversion: More than 92%

Waterproof Rating: Ip68

Wire lengths: 130mm/5.12inches

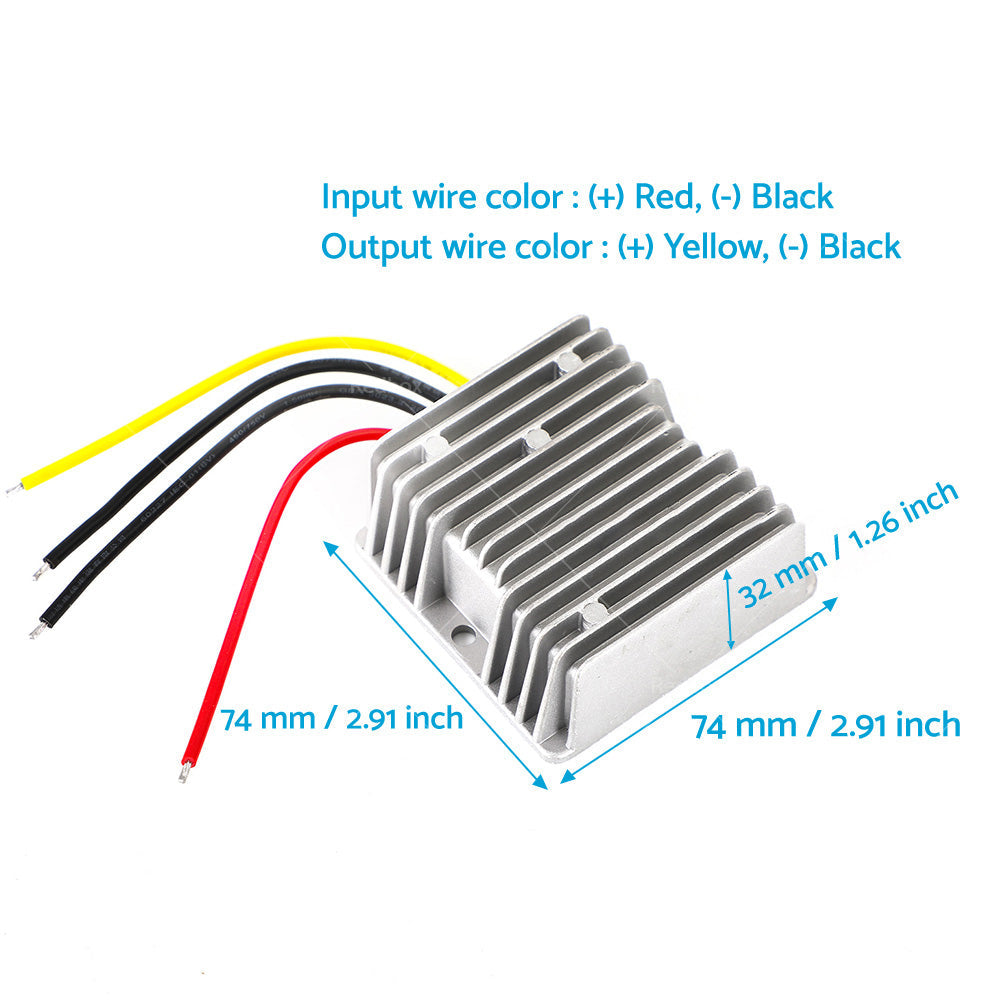

Size: 74 x 74 x 32 mm / 2.91 x 2.91 x 1.26 inch

Input wire color : (+) Red, (-) Black

Output wire color : (+) Yellow, (-) Black

Voltage regulation rate: 96%

Working efficiency: 96%

Output voltage accuracy: 96%

Load adjustment rate: 96%

Package include:

1 x DC/DC Converter Regulator
