Top End Rebuild Kit Suitable For Honda CRF250R 2004-2009 CRF250X 2004-2017

Compatible with：

Suitable For Honda CRF250R 2004-2009

Suitable For Honda CRF250X 2004-2017

Feature：

Premium Materials: Ensures durability and reliable performance.

Boosts Efficiency: Restores engine power and smooth operation.

Perfect Fit: Designed for specific engine models for easy installation.

Cost-Effective: Saves money on repairs, extending engine life.

Specification:

Type:  Top End Rebuild Kit

Warranty: 1 year

Displacement: 249cc

Engine type: 4-Stroke

Bore Type: Standard Bore

Bore diameter: 78.00mm

Stroke: 52.2 mm

Pin diameter: 16mm

Pin Length: 40mm

Reference Numbers:

Cylinder Base Gasket: Suitable for 12191-KRN-731

Cylinder Head Gasket: Suitable for 12251-KRN-671, 12251-KRN-731

Piston (Std): Suitable for 13101-KRN-670, 13101-KRN-850

Pin, Piston: Suitable for 13111-KRN-850

Piston Ring Set (Std): Suitable for 13011-KRN-A10, 13011-KRN-850

Circlips, piston (2): Suitable for 13115-KM7-700

Exhaust Gasket: Suitable for 18291-KPS-900

Chain Tensioner Gasket: Suitable for 14560-MEN-671

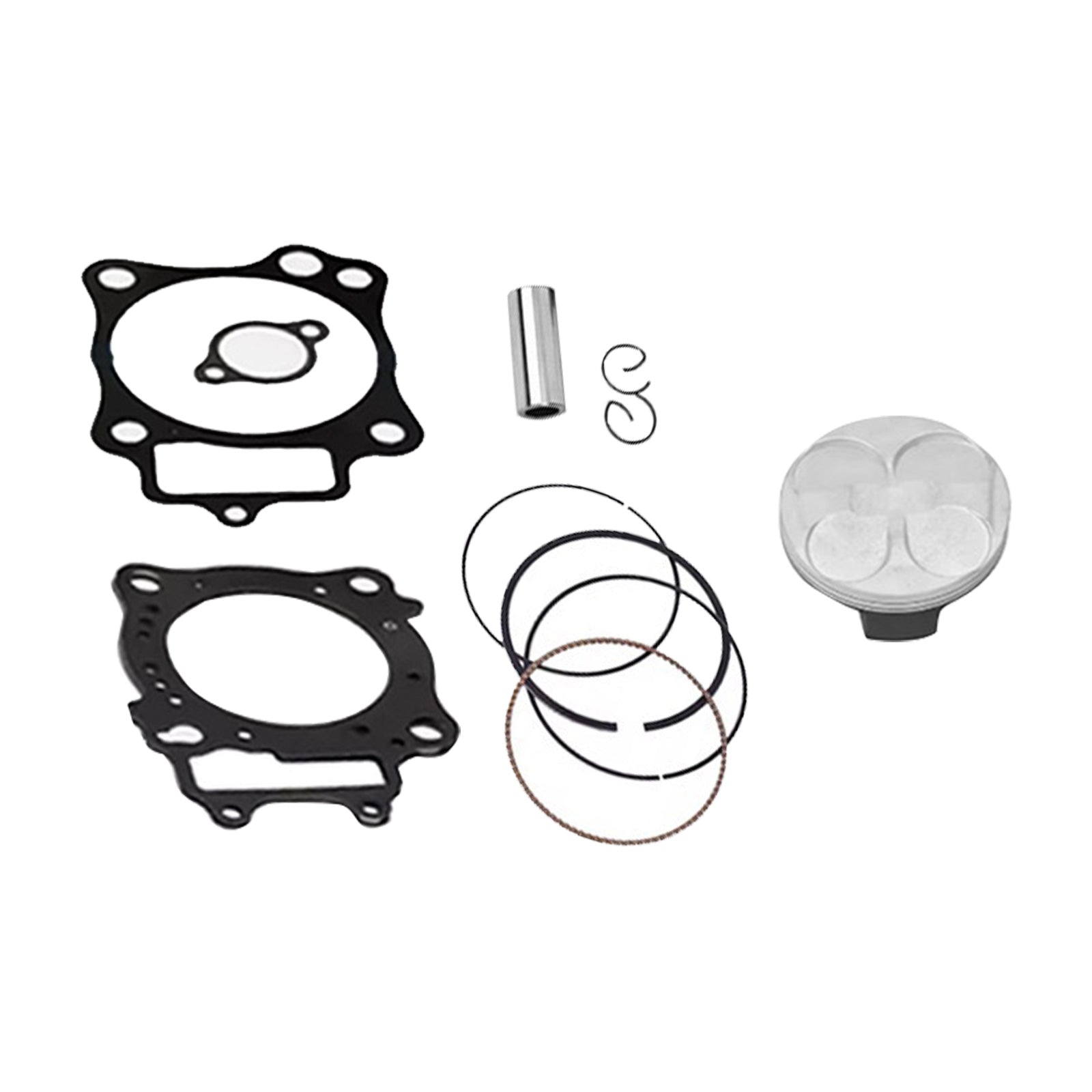

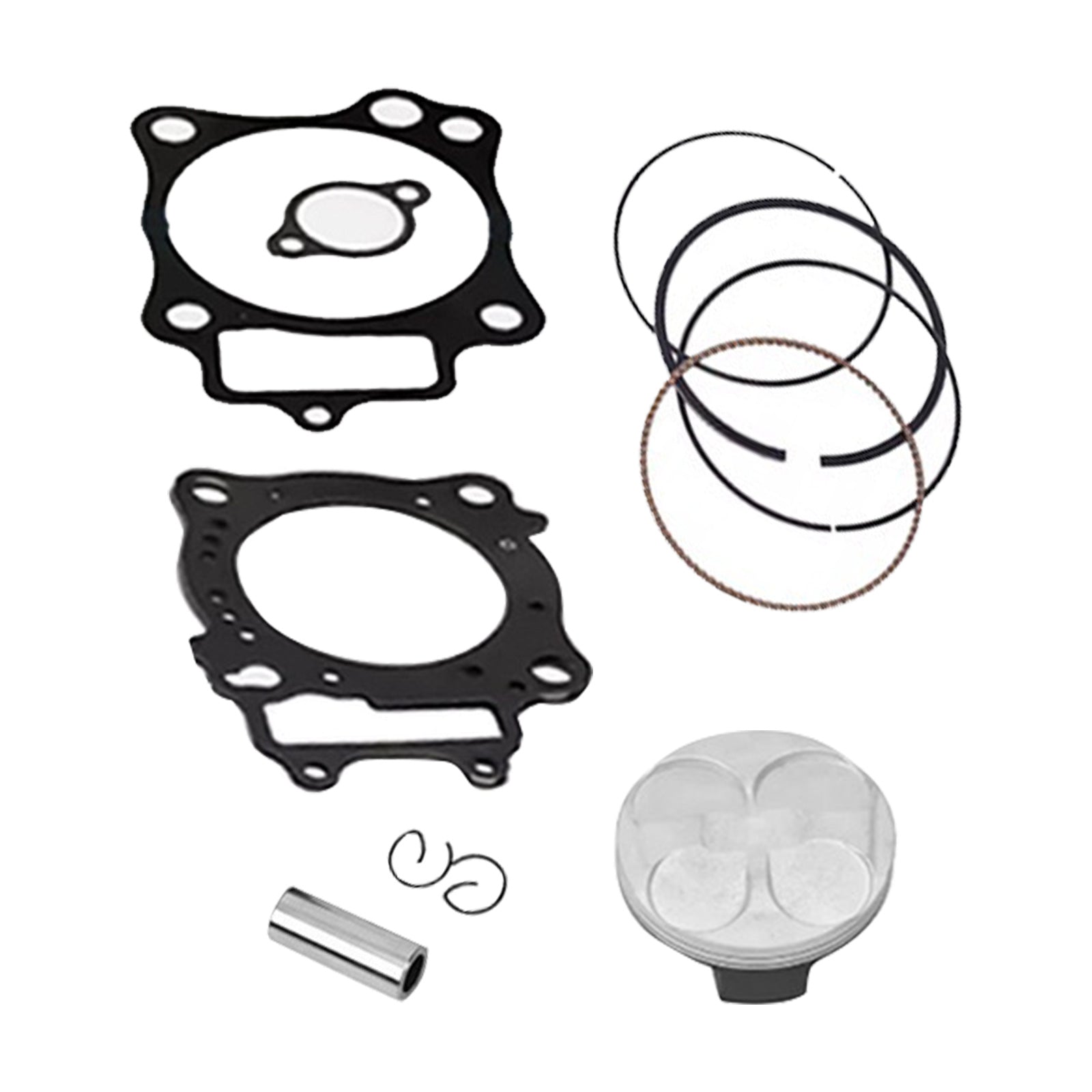

Package Include:

1x Piston

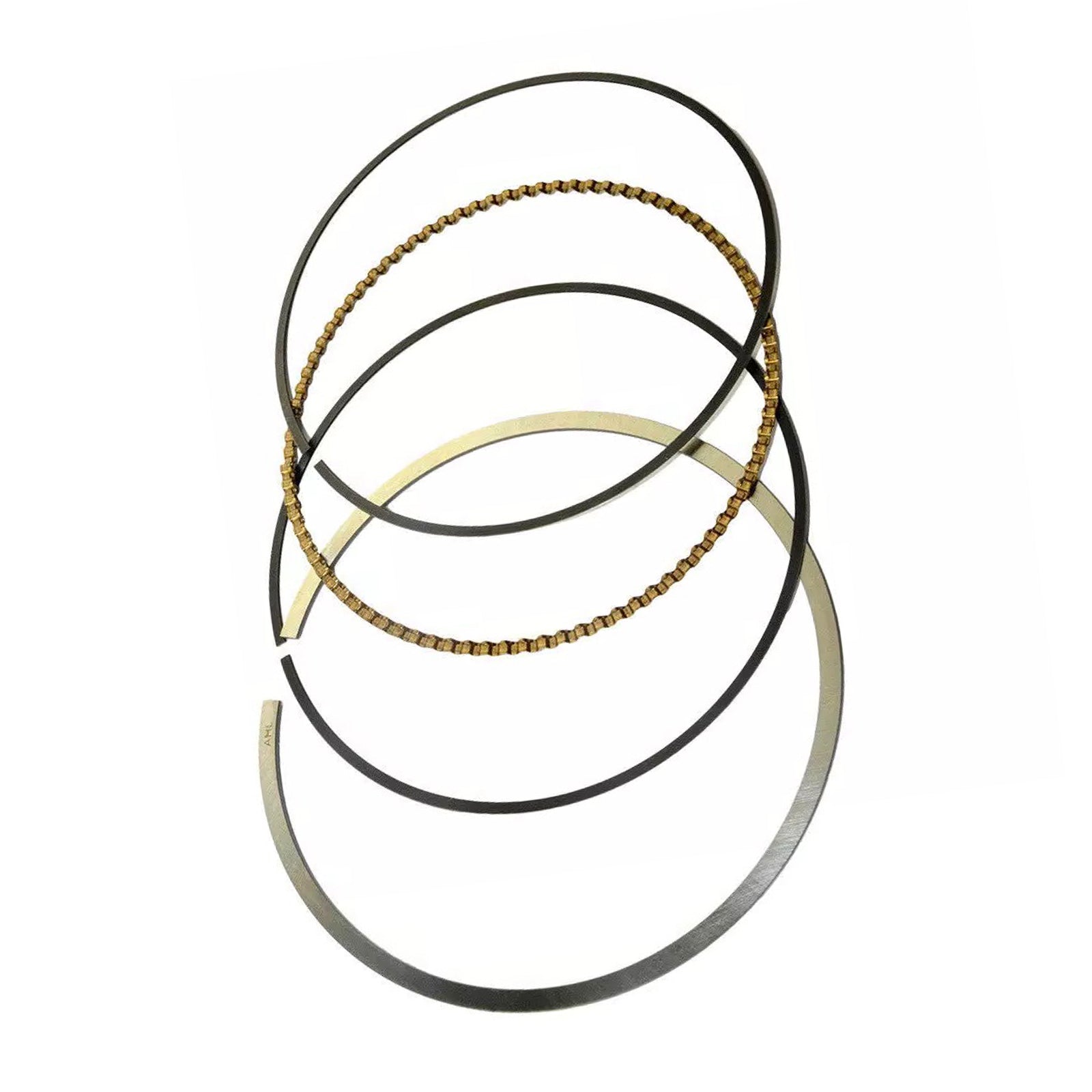

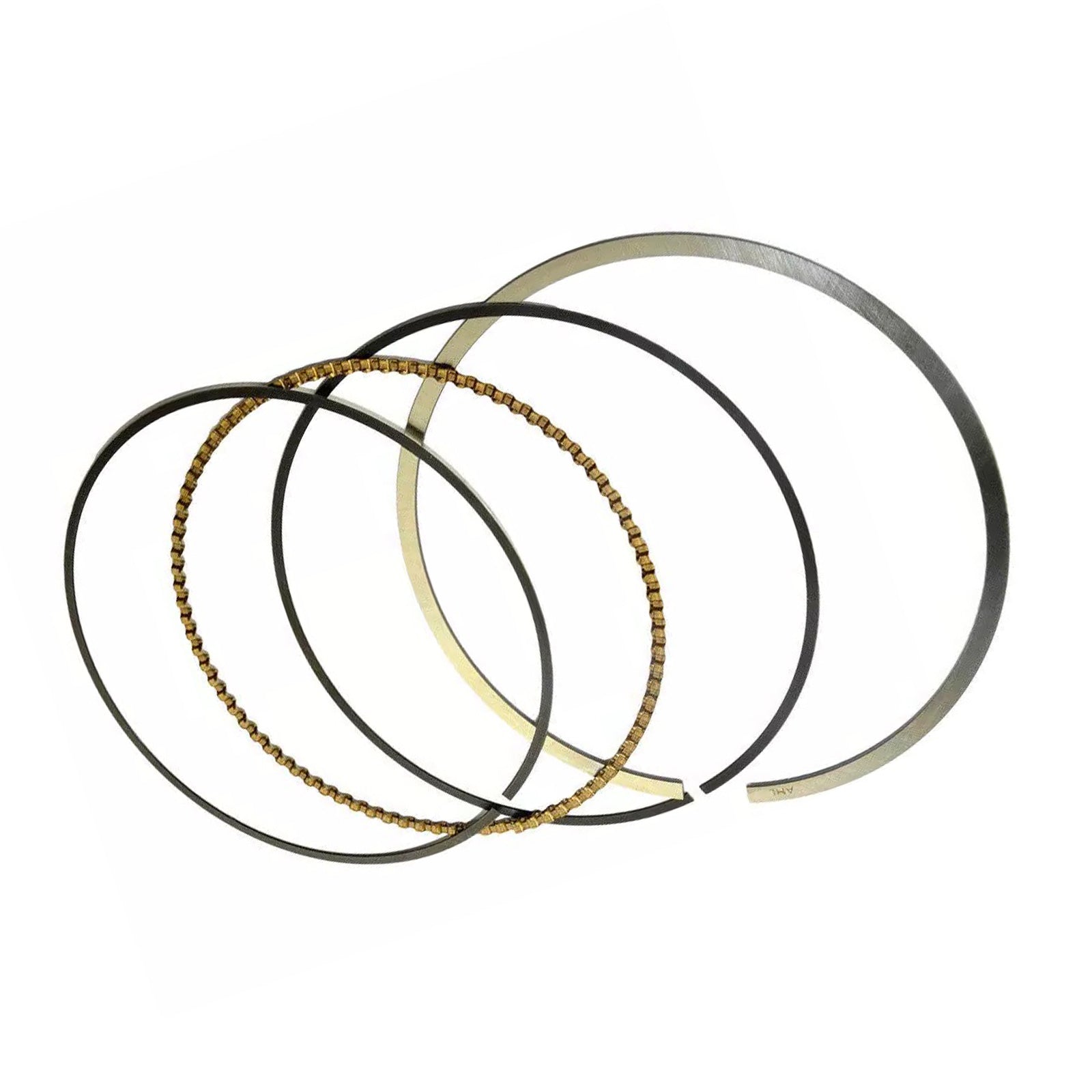

1x Piston Ring Set

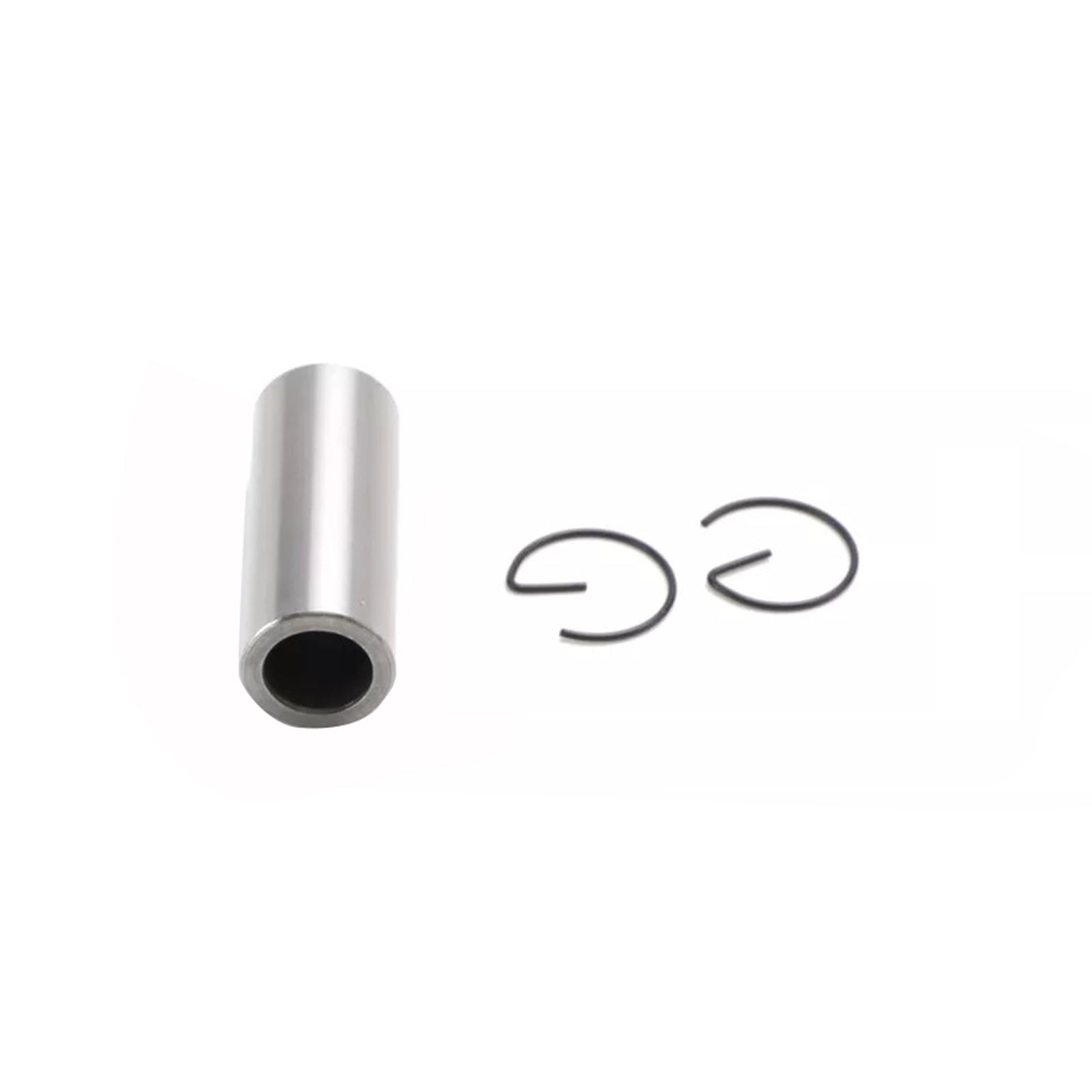

1x 16mm Wristpin

1x Circlip(2)

1x Cylinder Base Gasket

1x Cylinder Head Gasket

1x Exhaust Gasket

1x Chain Tensioner Gasket

Note：
Please note that all parts sold on this platform are aftermarket products.
While they are compatible with specific vehicle models, they are neither manufactured nor endorsed by the original equipment manufacturers (OEM).
All trademarks and brand names are used for identification purposes only and remain the property of their respective owners.
