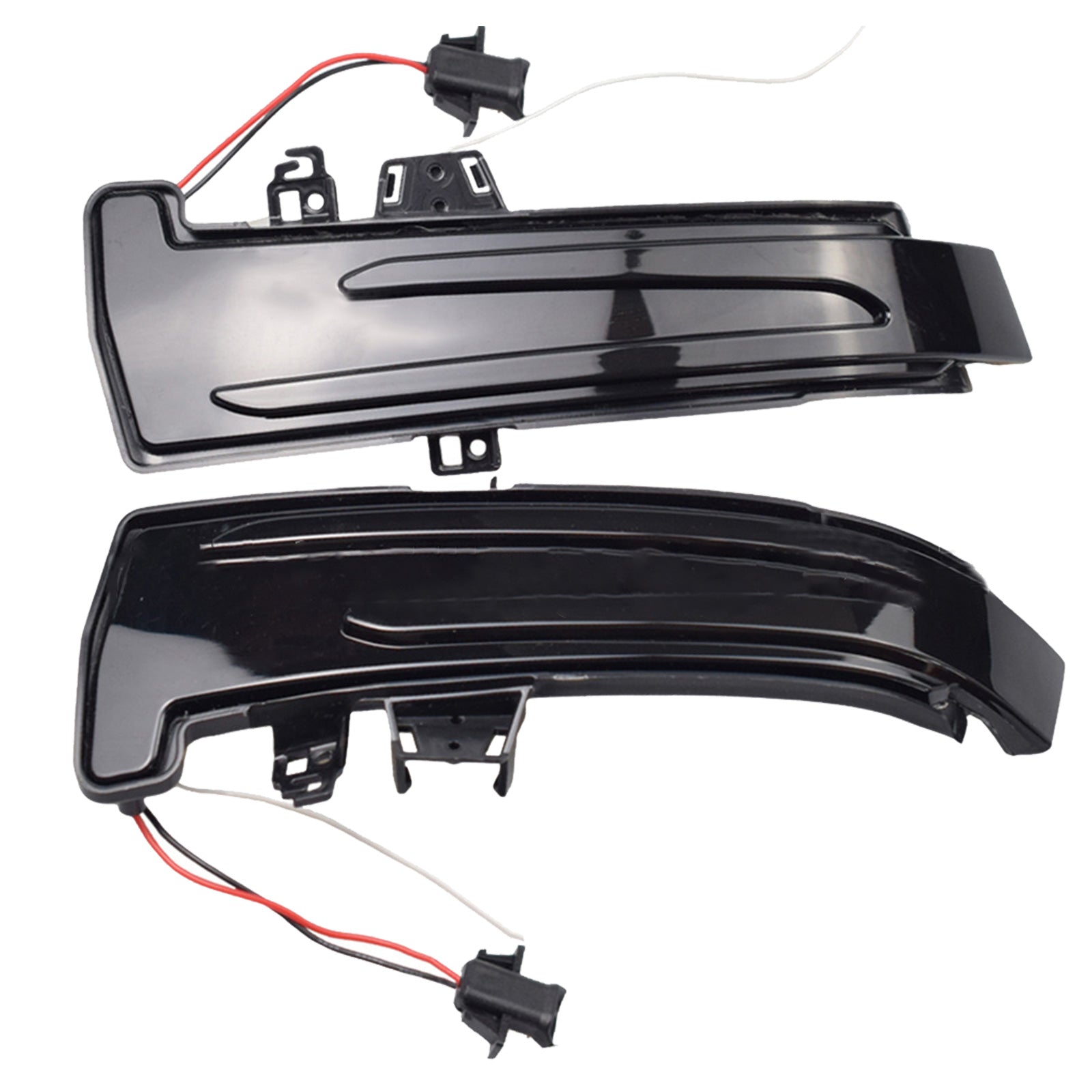

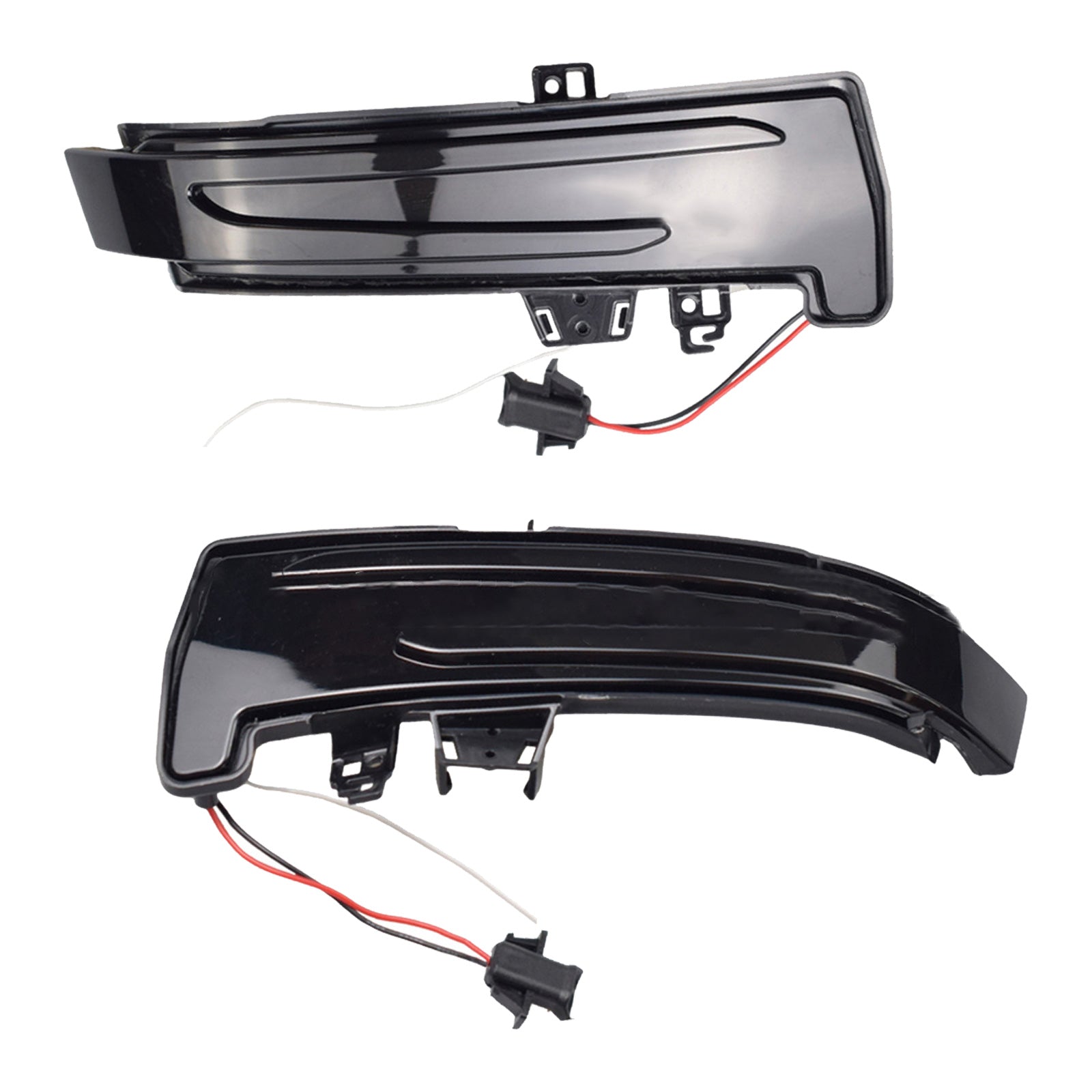

LED Side Mirror Turn Signal Lights Suitable For Mercedes-Benz A B C E GLA CLS

Specifications

Product Type: Dual color LED front side mirror signal lights

OE Numbers: Compatible with Mercedes-Benz A B C E GLA CLS

Material: Durable black ABS housing

Waterproof rating: IP67

Lens color: Smoked

Light colors: Amber and white

Installation position: Front side mirror lights

Operating temperature: -40 to 60 degrees Celsius

Voltage: 12-24V DC; Power: 3W

Low power consumption, quick start-up time

Compatible With

Suitable For Mercedes-Benz A-Class W176 (2013-2017): A180, A200, A250, A45

Suitable For Mercedes-Benz B-Class W246 (2012-2018): B180, B250, B250e

Suitable For Mercedes-Benz E-Class W212 (2010-2015): E200, E250, E300, E350, E400, E500, E550, E63, E63 S

Suitable For Mercedes-Benz C-Class W204 (2008-2013): C180, C200, C250, C300, C350, C400, C43, C63, C63 S

Suitable For Mercedes-Benz CLA-Class C117 (2014-2017): CLA180, CLA200, CLA250, CLA45

Suitable For Mercedes-Benz GLA-Class X156 (2014-2017): GLA180, GLA200, GLA250, GLA45

Suitable For Mercedes-Benz GLK-Class X204 (2008-2015): GLK250, GLK280, GLK300, GLK350

Suitable For Mercedes-Benz S-Class W221 (2007-2012): S350, S400, S400L, S450, S500, S500L, S550, S560, S600, S600L, S500 AMG, S63 AMG, S65

Suitable For Mercedes-Benz CLS-Class W218 (2011-2017): CLS350, CLS400, CLS500, CLS550, CLS63

Installation Method

There are three ways to connect to achieve the dynamic white light effect, each producing different results:

1. Connect to the positive power supply of the puddle lights. The dynamic white light will illuminate for 3-10 seconds after the vehicle is unlocked or locked.

2. Connect to the positive power supply of the rearview mirror flip mechanism. The dynamic white light will illuminate for 3-10 seconds after unlocking the vehicle.

3. Connect to the positive power supply wire on the door panel. The dynamic white light will illuminate for 3-10 seconds after unlocking or locking the vehicle or after the turn signal is turned off.

If you prefer not to have the white light, you can cover it with tape or cut the wire, leaving only the yellow turn signal functional.

Package include

2 x Side Mirror Lights
