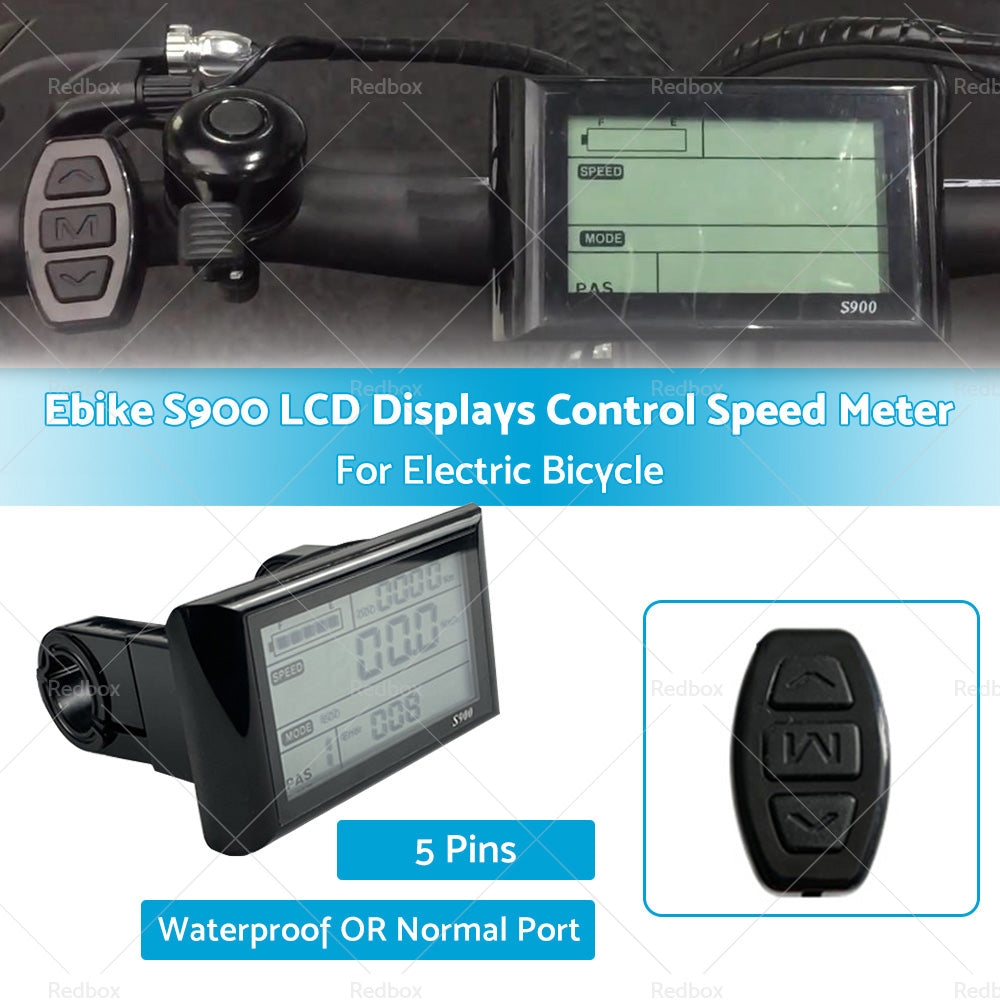

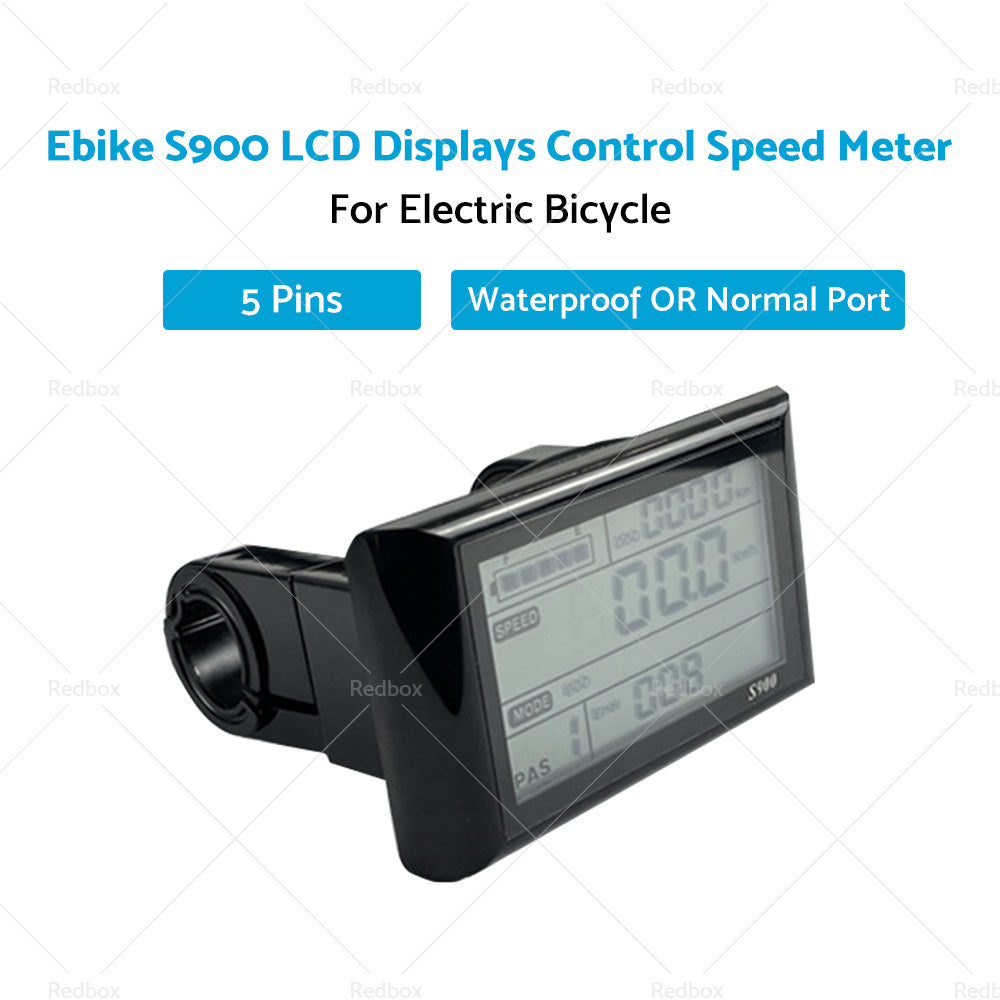

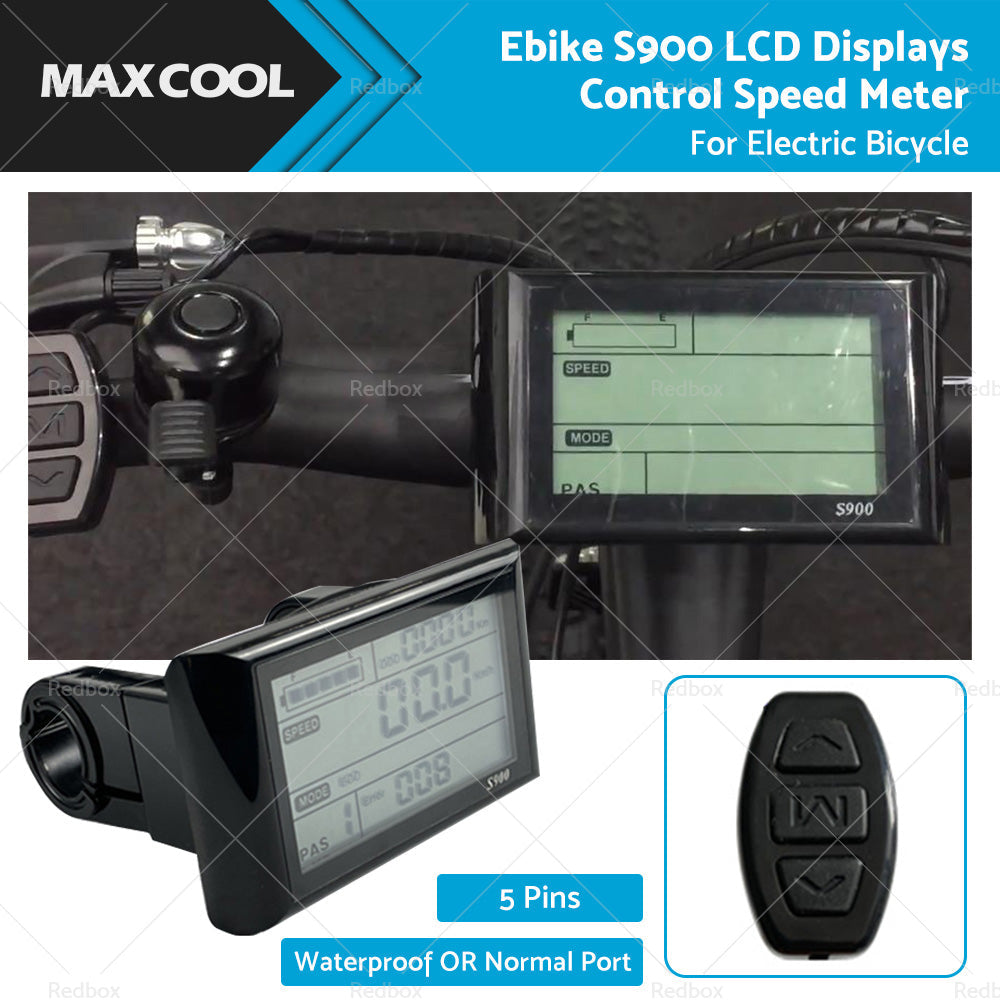

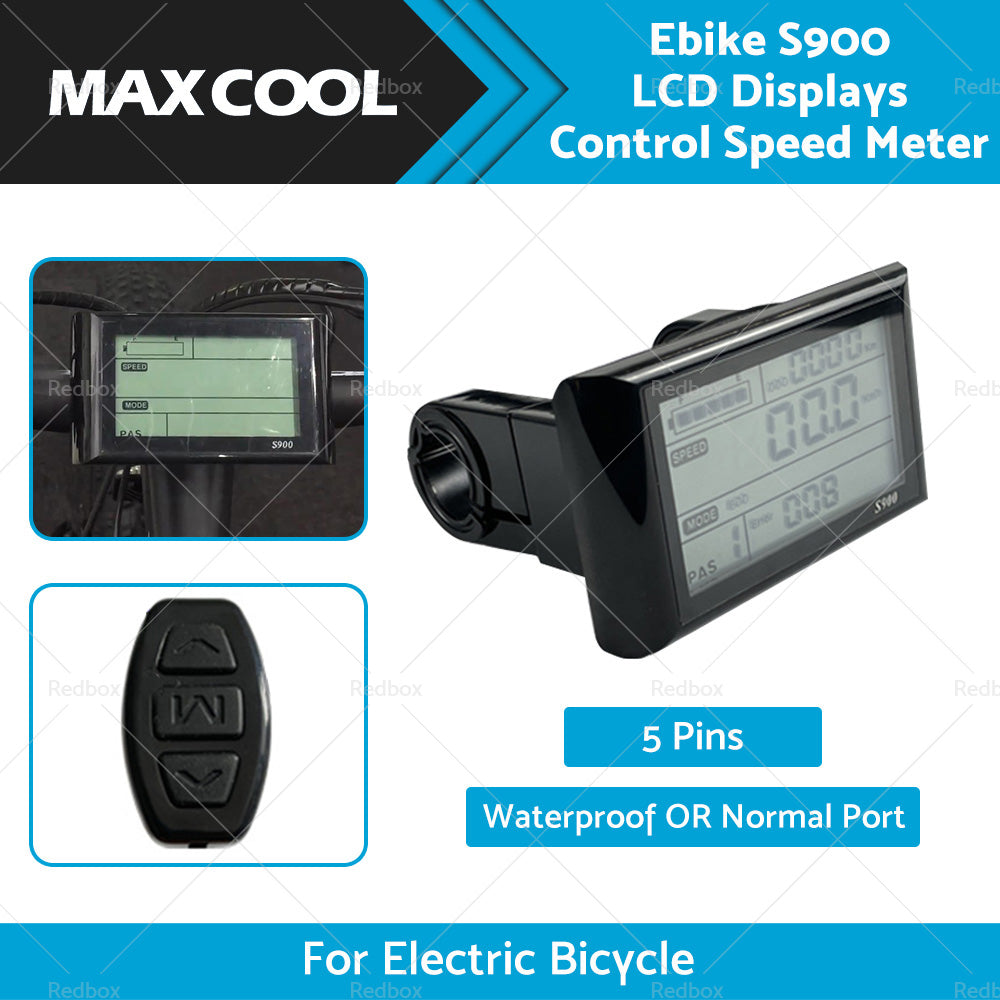

Ebike S900 LCD Displays Control Electric Bicycle Speed Meter Speedometer

Features:

(1) Display Function:

*Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.

(2) Control/Setting Function:

*Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

(3) Harness Description:

    ①Red (P+) meter power cord

    ②Blue (VCC) electric door lock wire

    ③Black (GND) negative wire

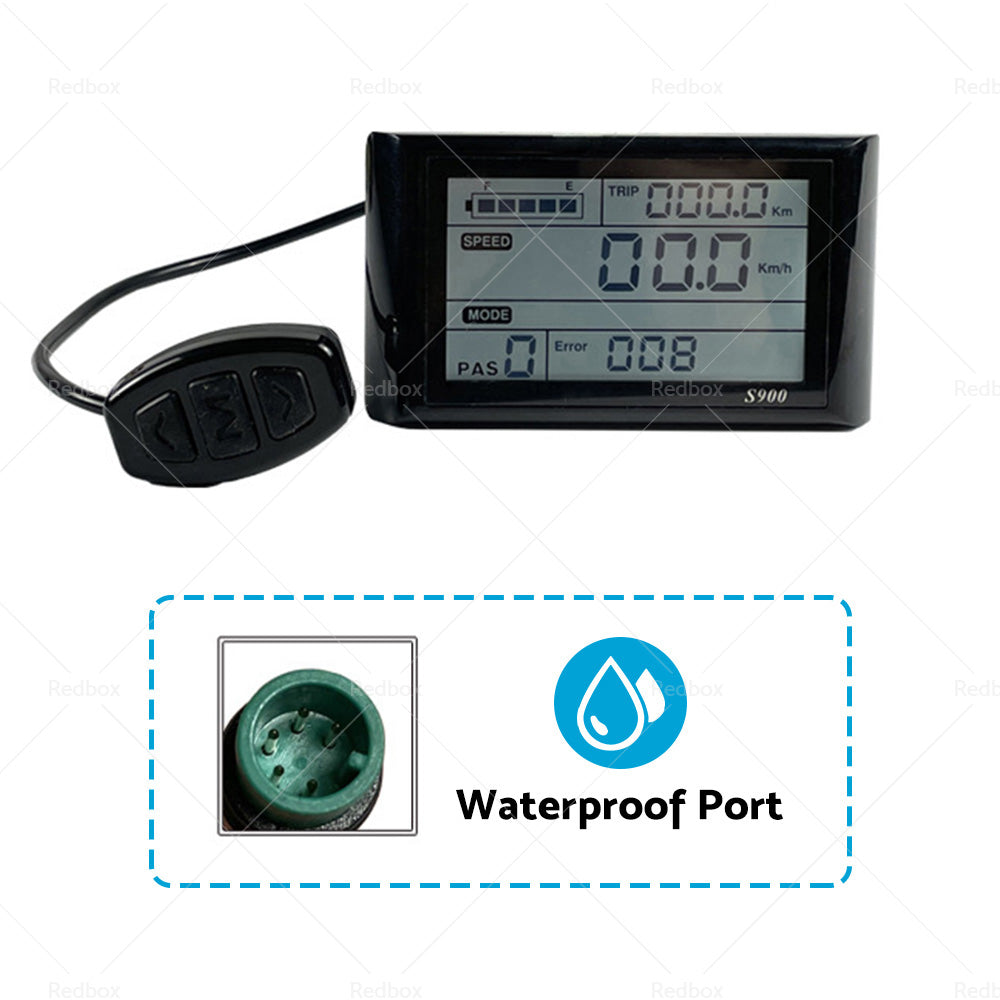

    ④Green (RX) Meter data receiving

    ⑤Yellow (TX) Meter data transmission

(4) Meter Setting Function：

    ①Long press the up and down buttons of the meter to enter the meter settings.

        *P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.

        *P02: Mileage unit, 0: KM; 1: MILE.

        *P03: Voltage level: 24V, 36V, 48V.

        *P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes.

        *P05: Power assist gear 1-9

        *P06: Wheel diameter: unit, inch; precision: 0.1.

        *P07: Number of speed magnets: range: 1-100.

        *P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.

        *P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start.

        *P10: Drive mode setting 0: power-assisted drive (the handle is invalid).

                1: Electric drive (by turning the handle to drive, the power gear is invalid at this time).

                2: Power-assisted drive and electric drive coexist at the same time.

        *P11: Assist sensitivity setting range: 1-24.

        *P12: Assist start intensity setting range: 0-5.

        *P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single Hall power-assisted sensors.

    ②Setting 12 is used for dual Hall assist sensors.

        *P14: This function is not available yet.

        *P15: This function is not available yet.

        *P16: ODO reset setting, Long press the up button for 5 seconds ODO reset

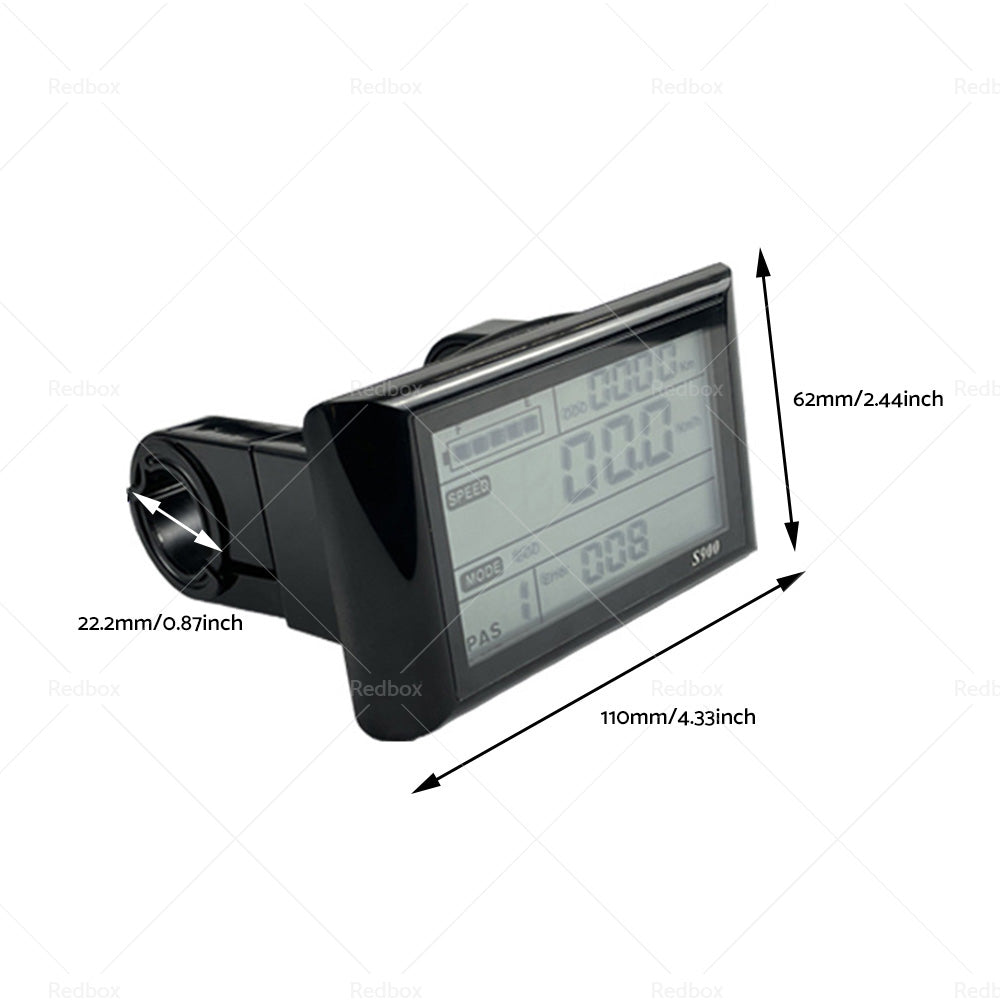

Specification:

Brand: ALL IN HOME BOX

Type: LCD Display Meter

Material: ABS

Colour: Black

Model: S900

Package Included:

1 x Speed Meter (With Waterproof Port / Normal Port)

Note:

Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
