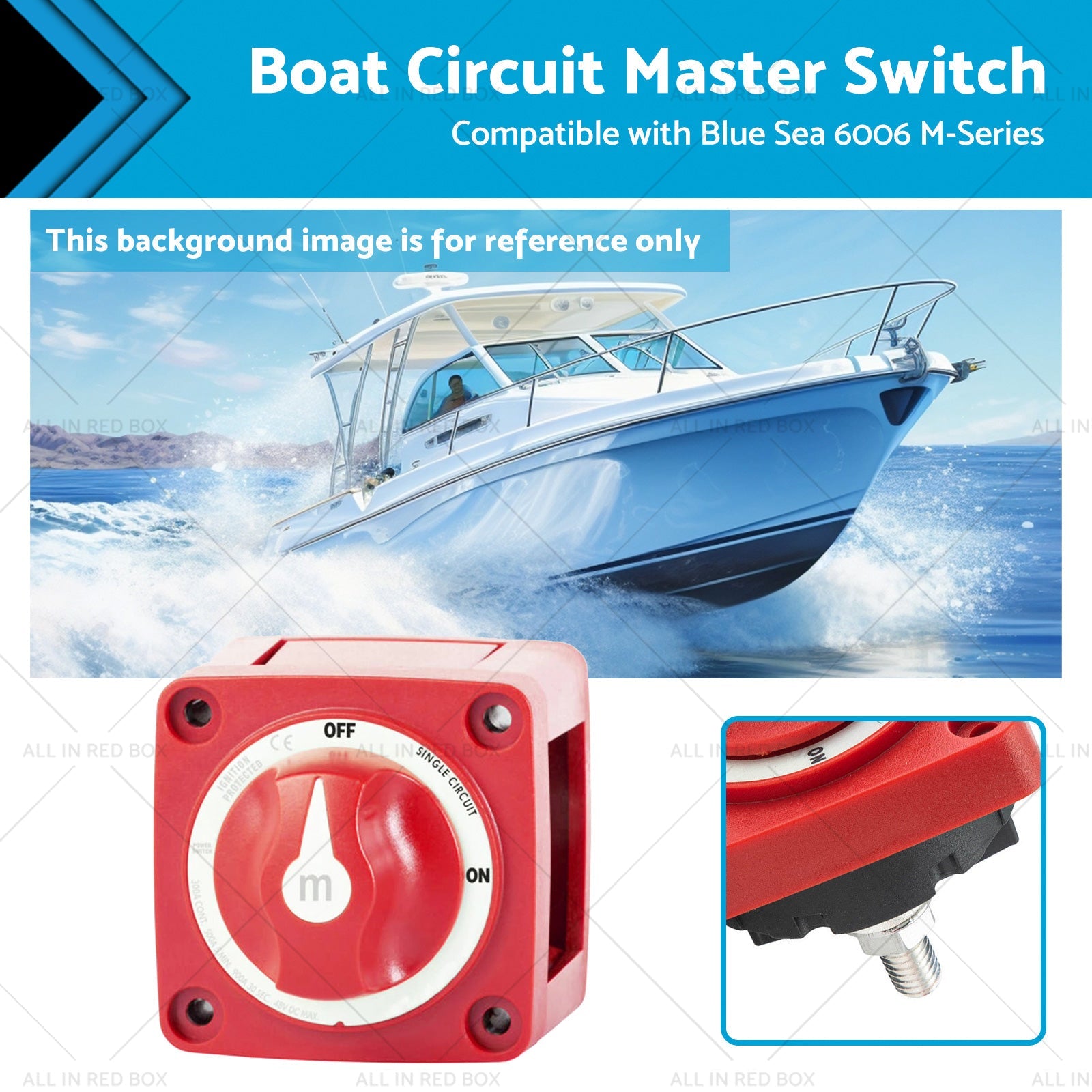

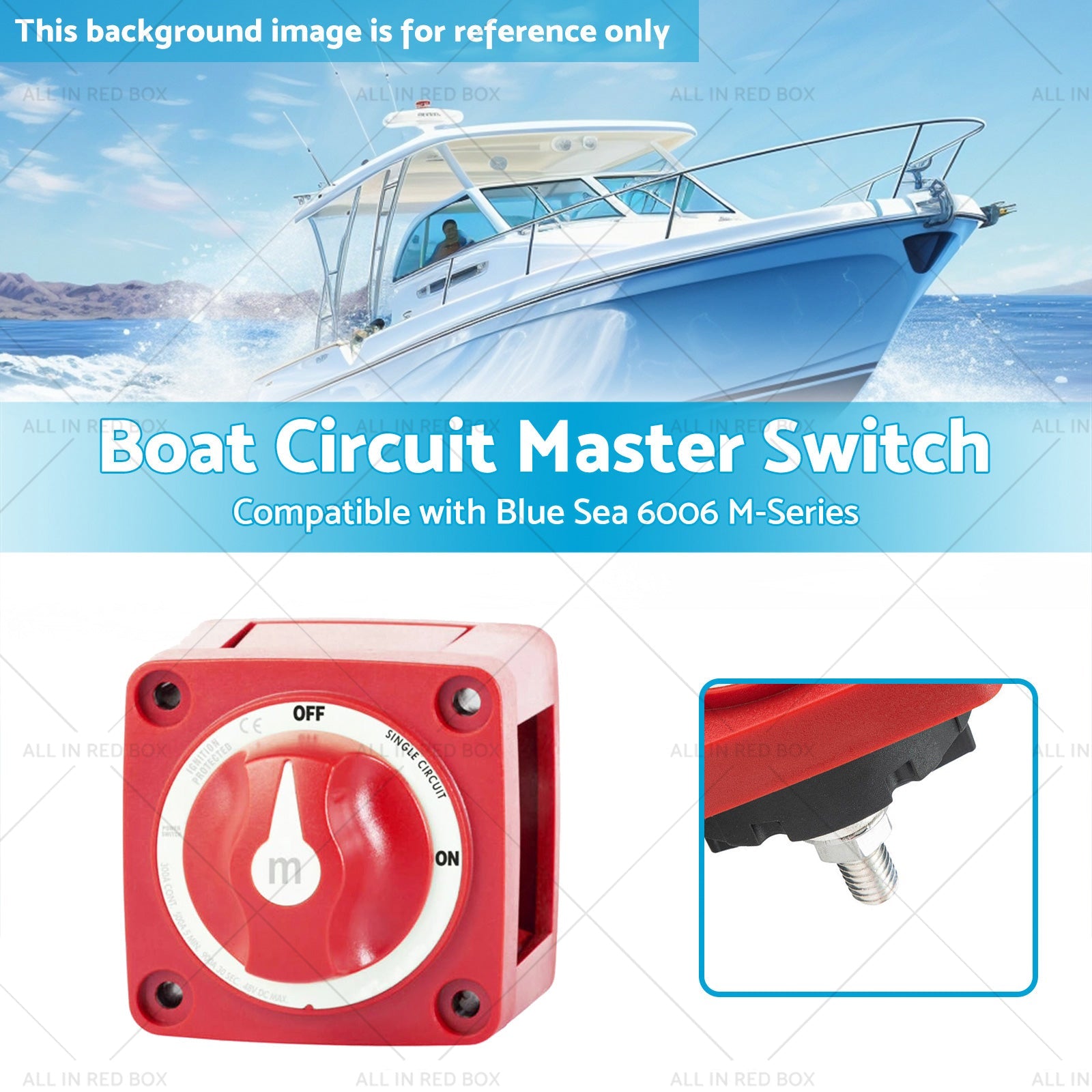

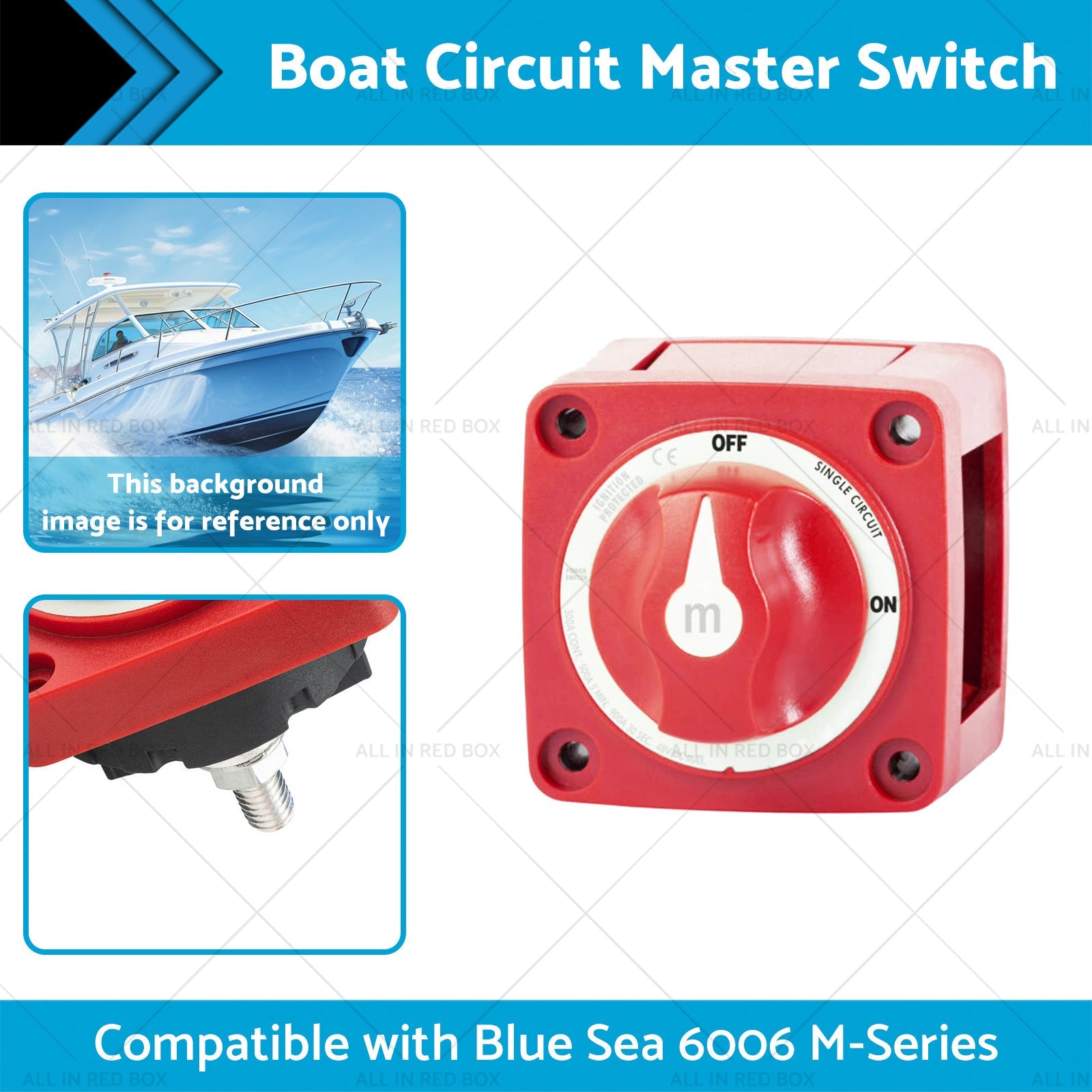

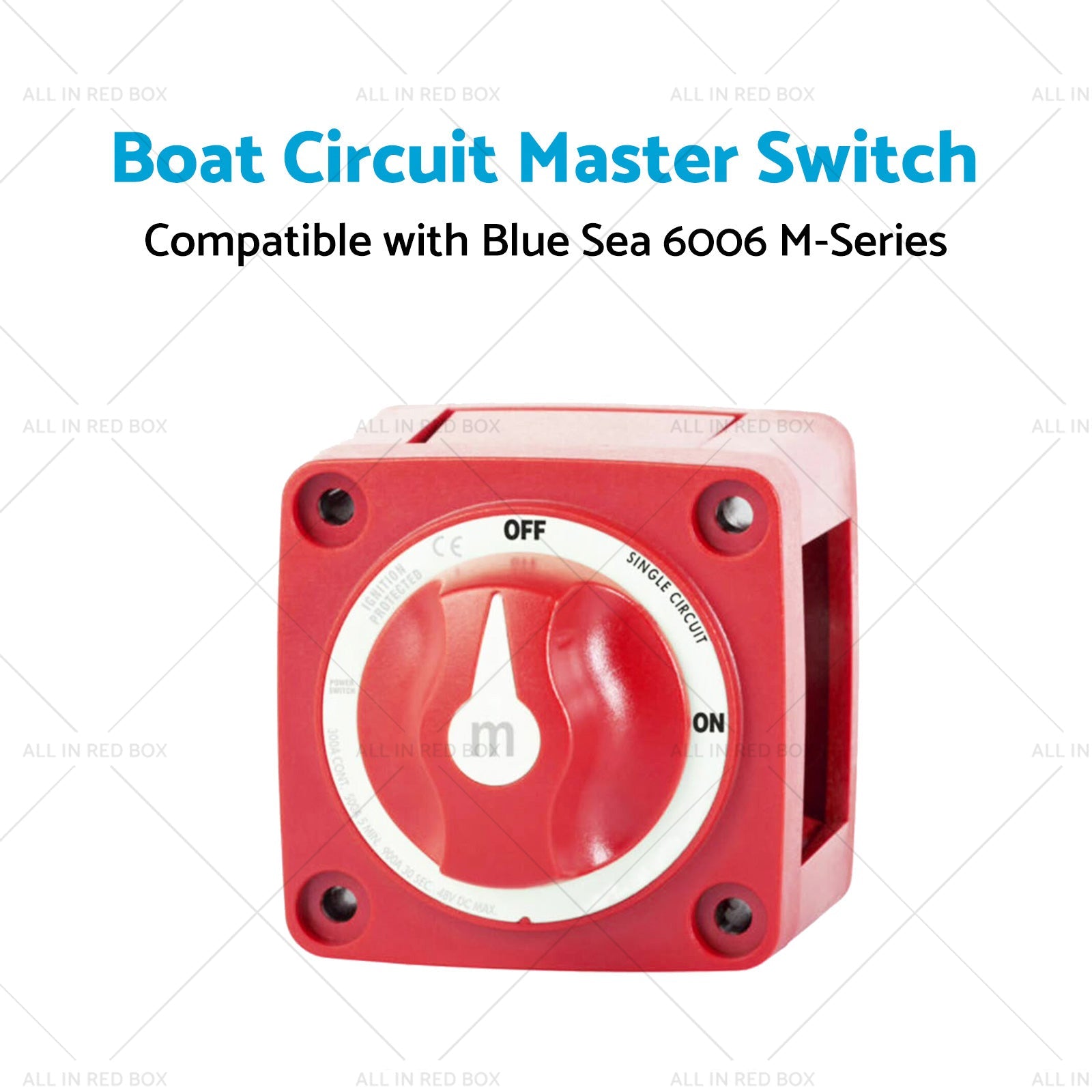

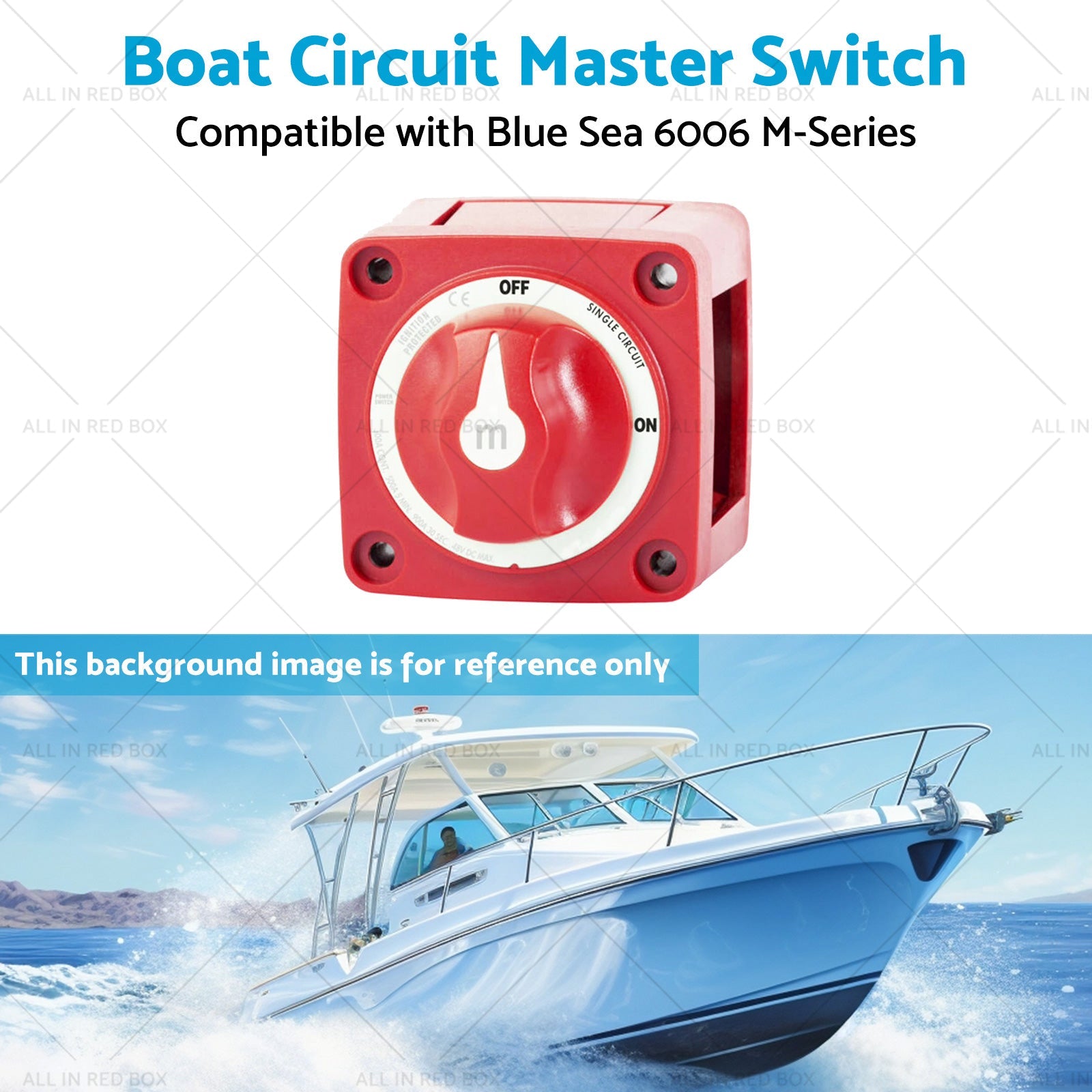

Boat Circuit Master Switch Suitable for Blue Sea 6006 M-Series Battery On Off

Compatible with:

Suitable for Blue Sea 6006 M-Series

Specifications

Type: Boat Circuit Master Switch

Operation Mode: ON-OFF

Switch position: 2

Battery combination: No

The alternator is disconnected on site: No

Maximum voltage: 48V DC

Terminal torque: 120 inch pounds (13.56 Nm)

Continuous rating: 300A

Intermittent rating: 500A (5 minutes)

Starting rating 10 seconds: 1500A

Starting rating for 1 minute: 775A

Battery input: 1

Cable gap for 4/0 AWG cable: 1.12 inches (28.45 mm)

Compliant cable size: 4/0 AWG (120mm sq)

Mounting hole: accept #10 screw

Terminal size: 3/8 "-16 (M10)

International Protection Rating: IP66

Package include:

1x Boat Circuit Master Switch

Note:

This switch does not support battery combination or alternator disconnection on-site.
