78mm Cylinder Big Bore Kit Suitable For Kawasaki KLX300 KLX250 S R SF 1993-2014

Compatible with:

Suitable for Kawasaki KLX300 1996-2003

Suitable for Kawasaki KLX300R 1997-2007

Suitable for Kawasaki KLX250 1993-1996

Suitable for Kawasaki KLX250R 1994-1996

Suitable for Kawasaki KLX250S 2005-2014

Suitable for Kawasaki KLX250SF 2009-2010

Specifications

Type: Cylinder Big Bore Kit

Displacement: 292cc

Bore Size: 78mm

Stroke: 61.2mm

Pin Diameter: 17mm

Replacement Part Number:

Cylinder: 11005-1983

Cylinder Base Gasket: 11061-1506

Cylinder Head Gasket: 11004-0091

Piston (Std): 13001-1463

Pin, Piston: 13002-1109

Piston Ring Set (Std): 13008-1071

Circlips, piston: 92033-1054

Package include:

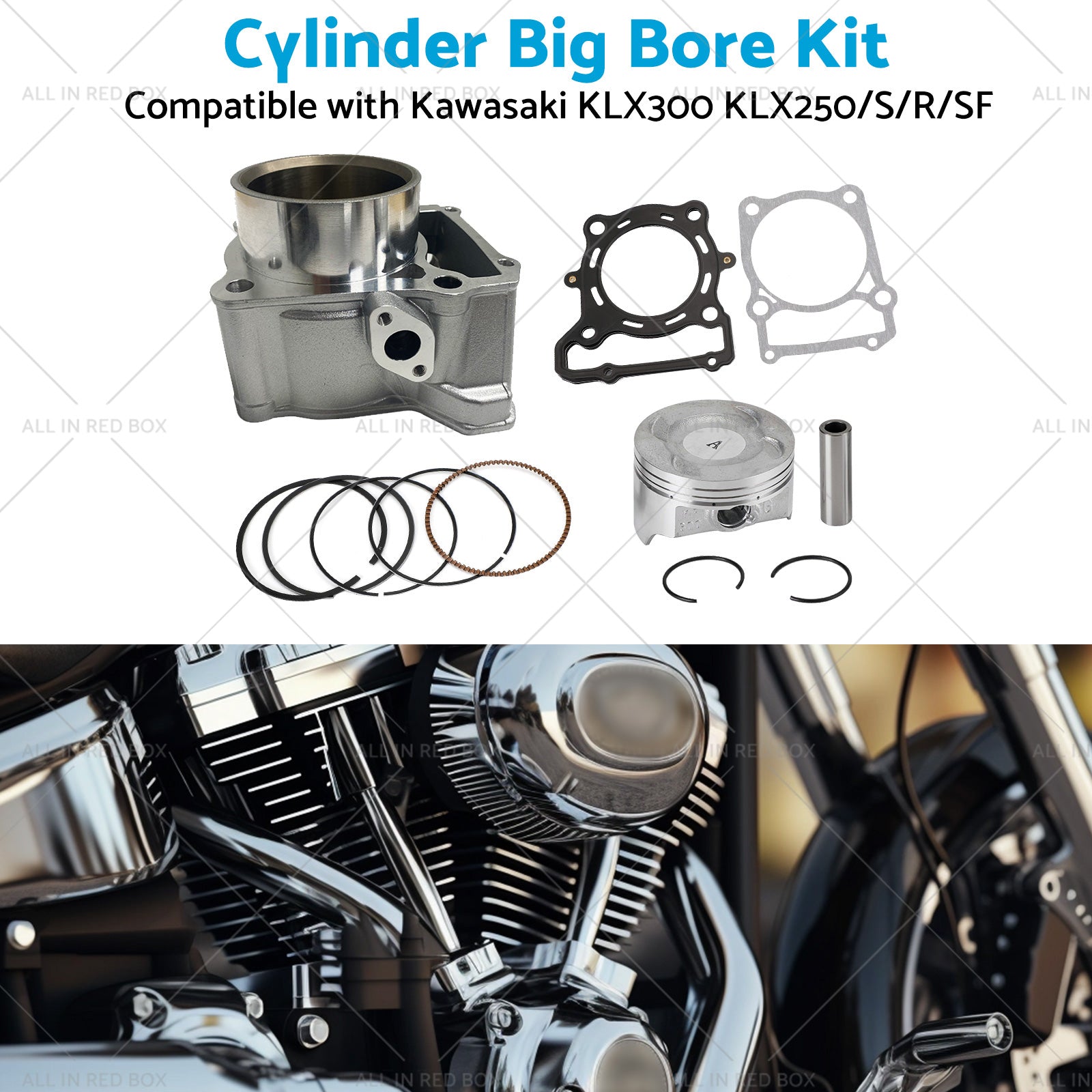

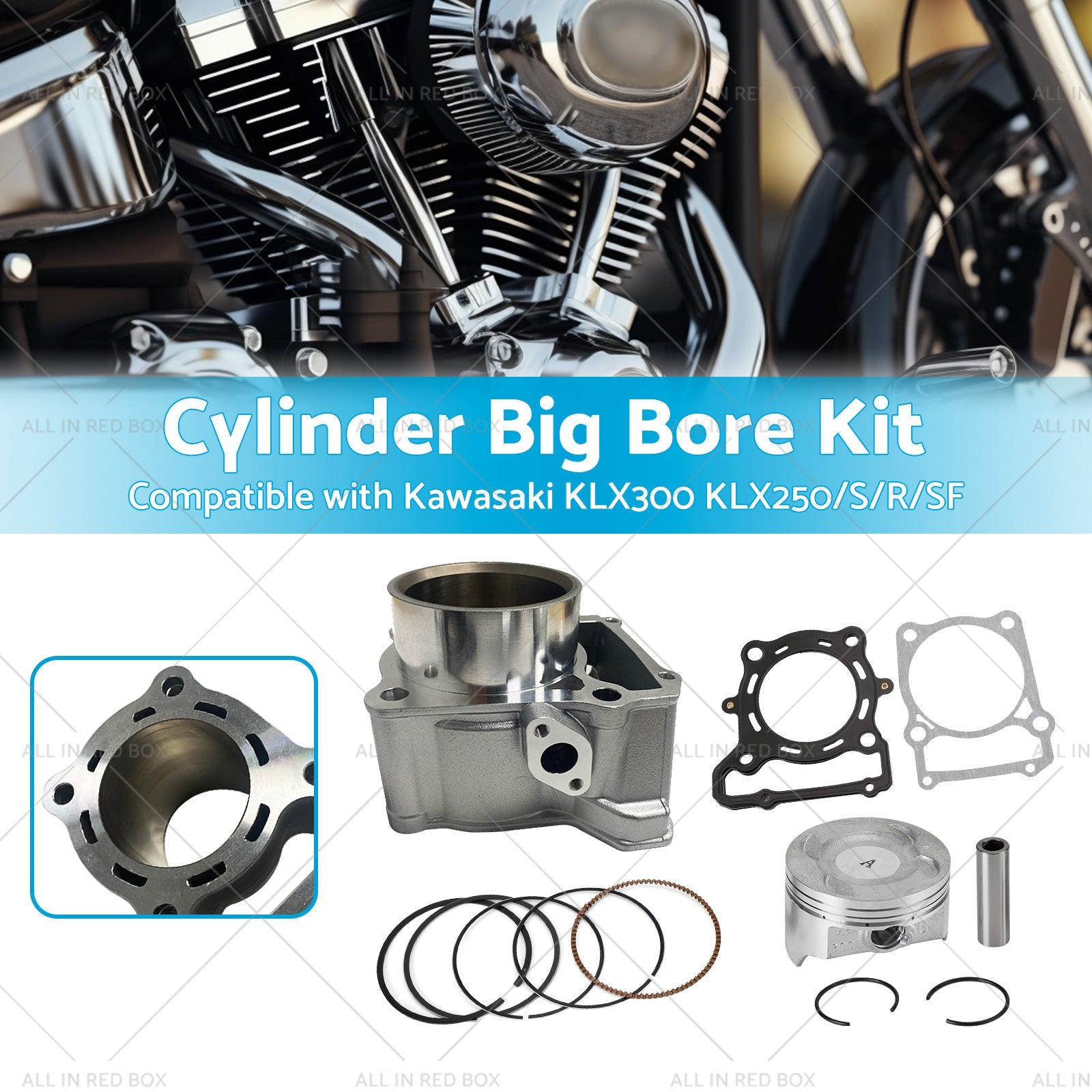

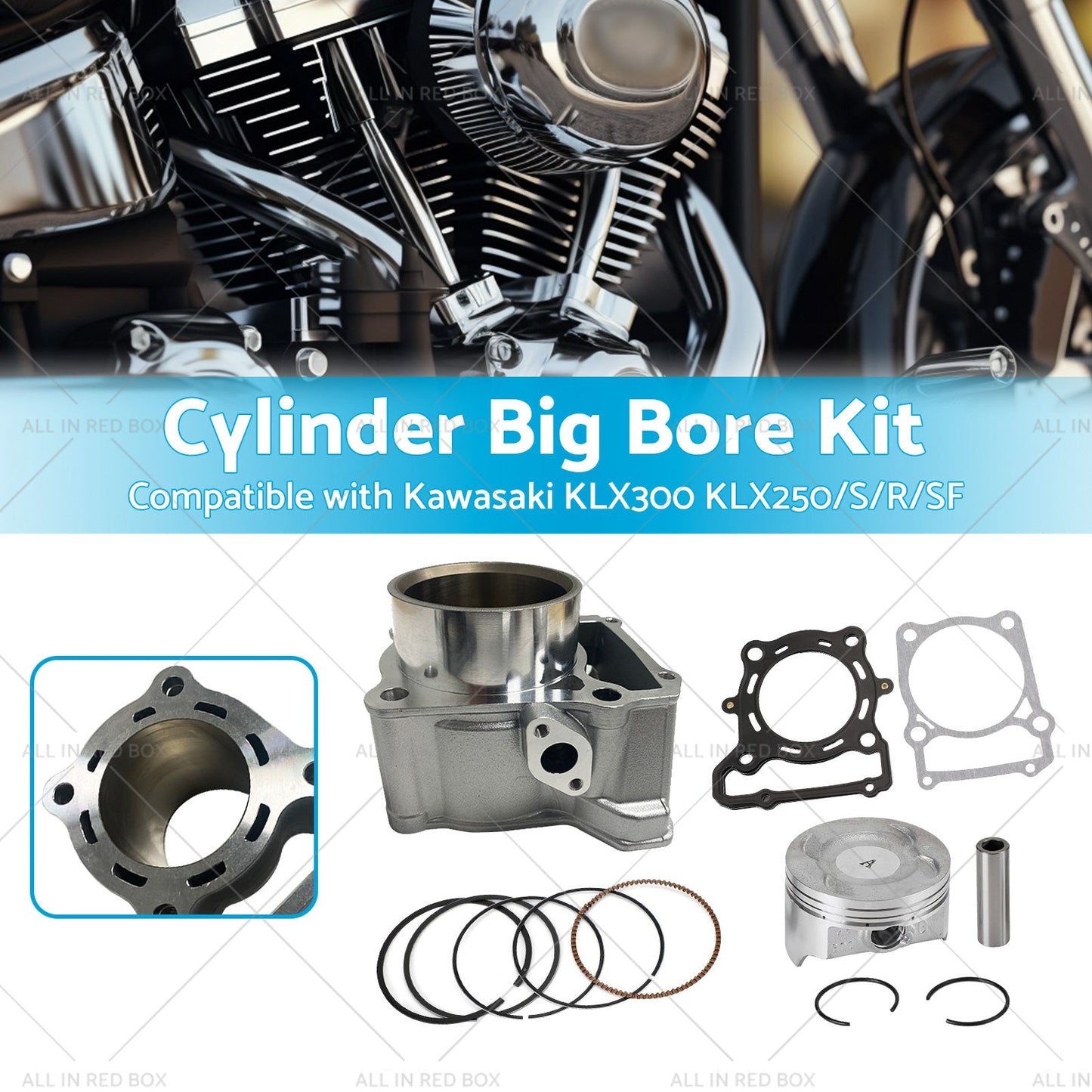

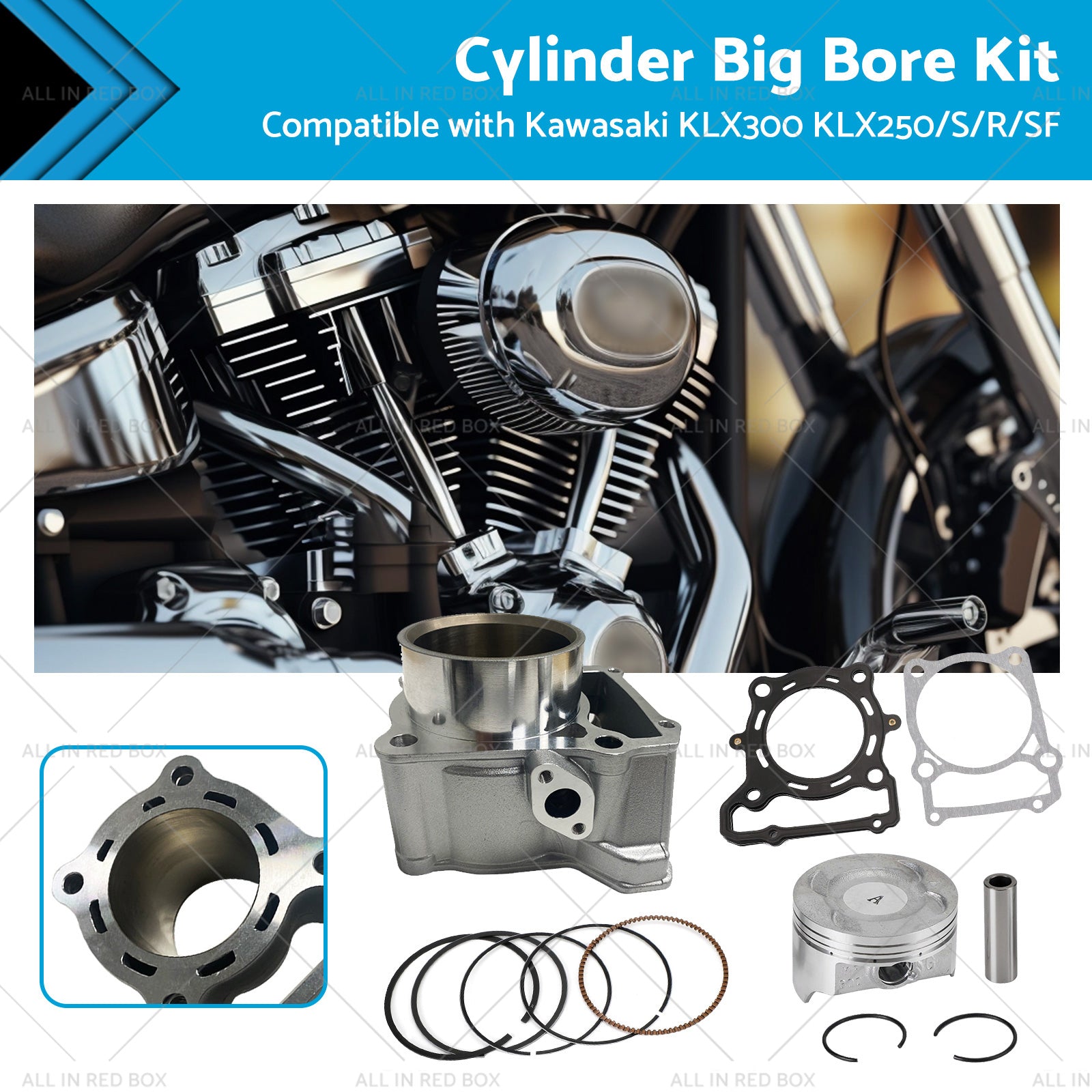

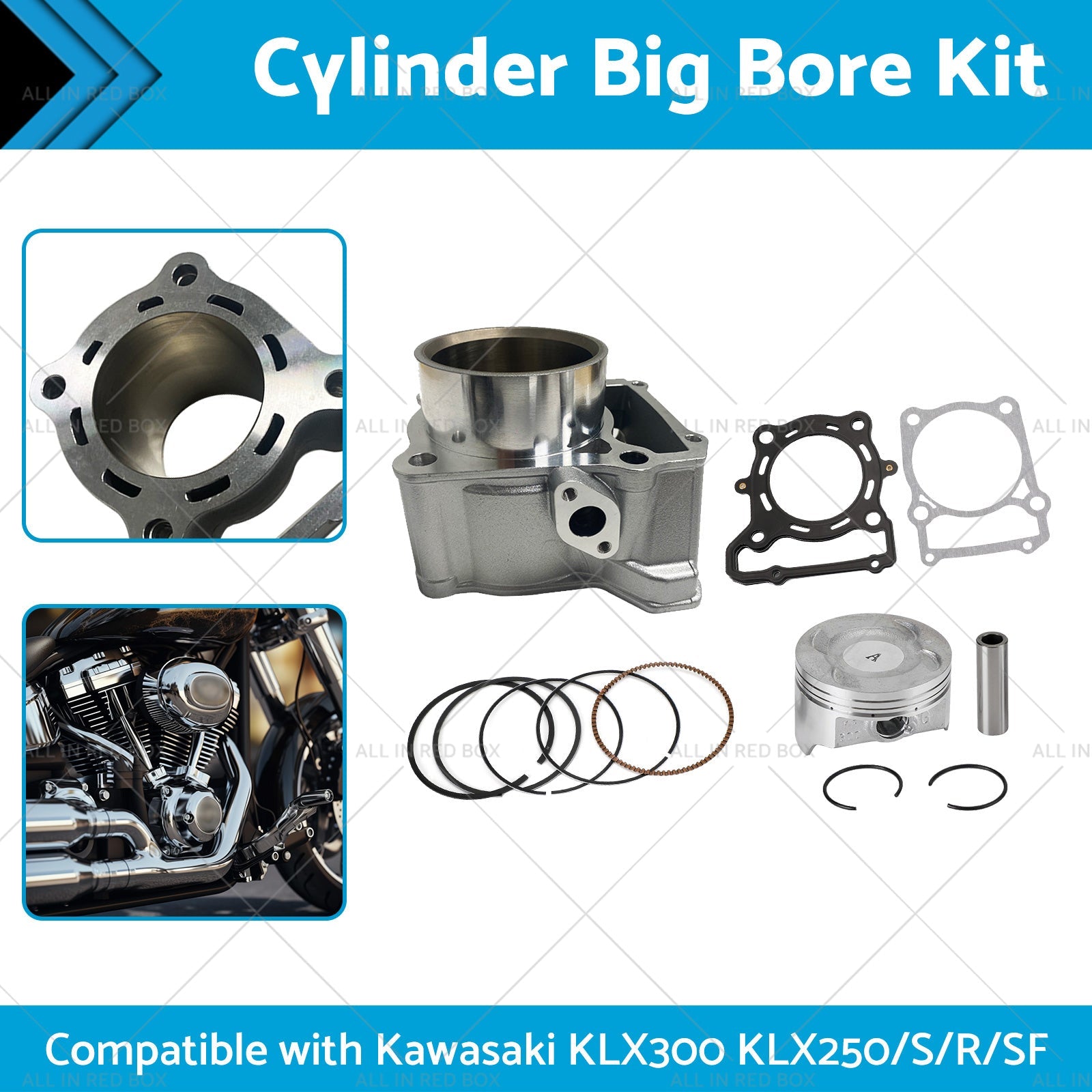

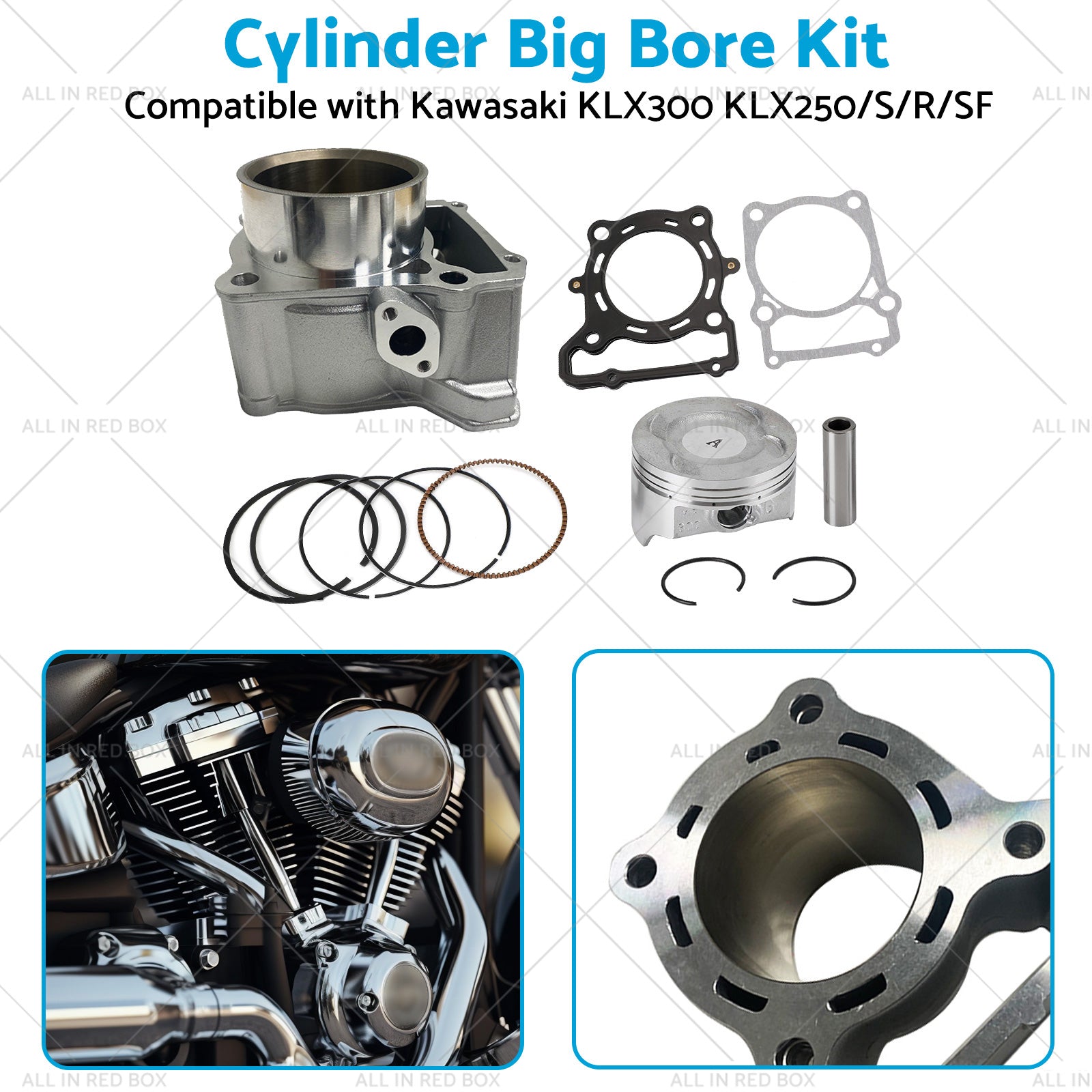

1 Kit Cylinder Big Bore (as shown in the figure)

Features:

The kit includes a piston, ring, pin, fixture, and top washer kit (as shown in the figure).

Cast pistons have additional strength with ultra-high silicon content.

The piston skirt is coated with molybdenum polytetrafluoroethylene coating to minimize resistance/wear and extend service life.

The piston dome has undergone anodizing treatment, providing excellent heat resistance and longer service life.

The gasket is made of high-performance materials to improve durability and provide higher reliability.

The kit has a large diameter of 78mm for KLX300, 17mm steel piston pin

All components in the kit are bolted and can be easily installed.
