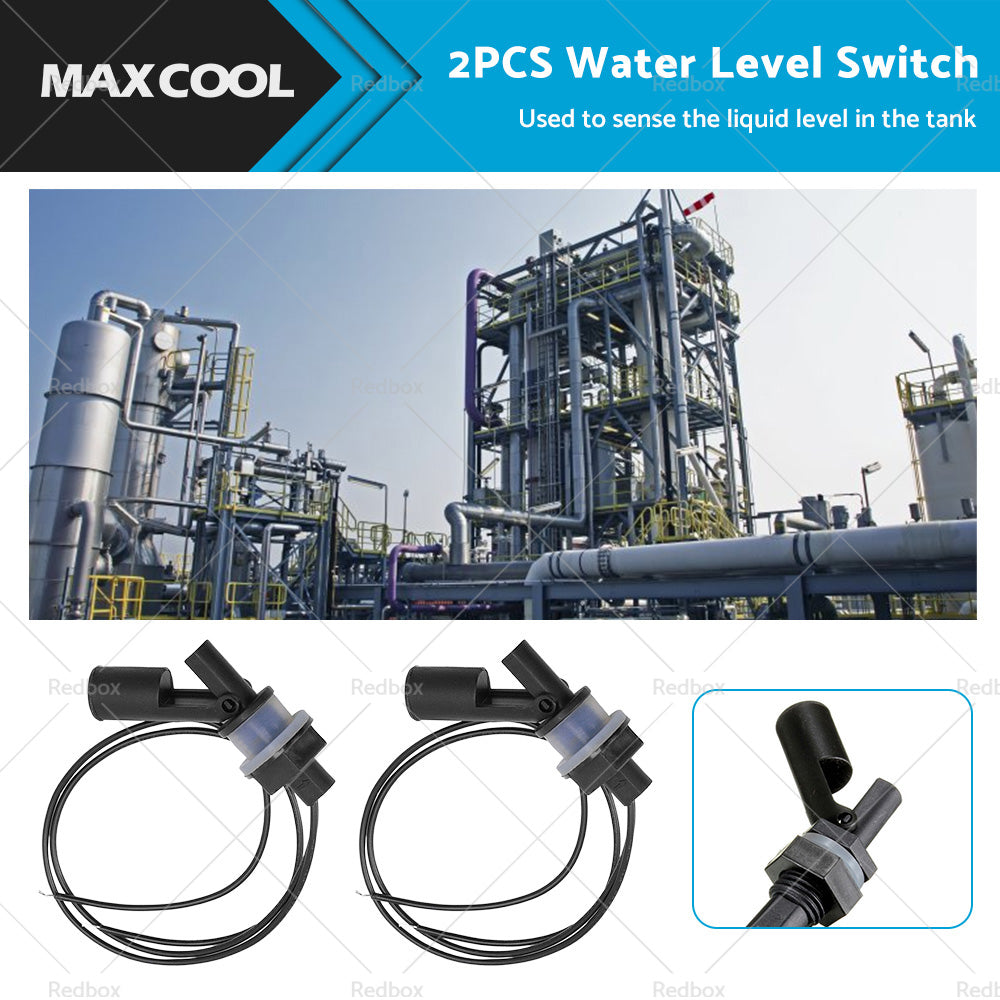

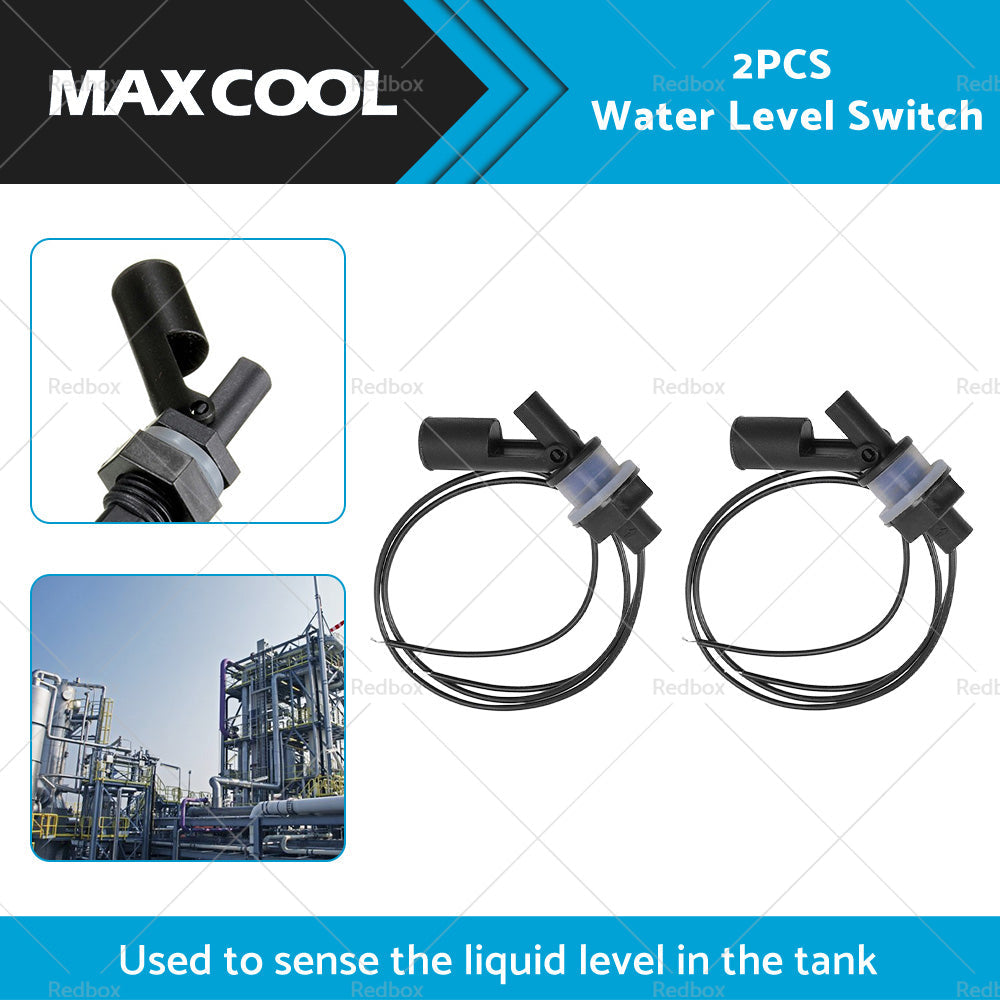

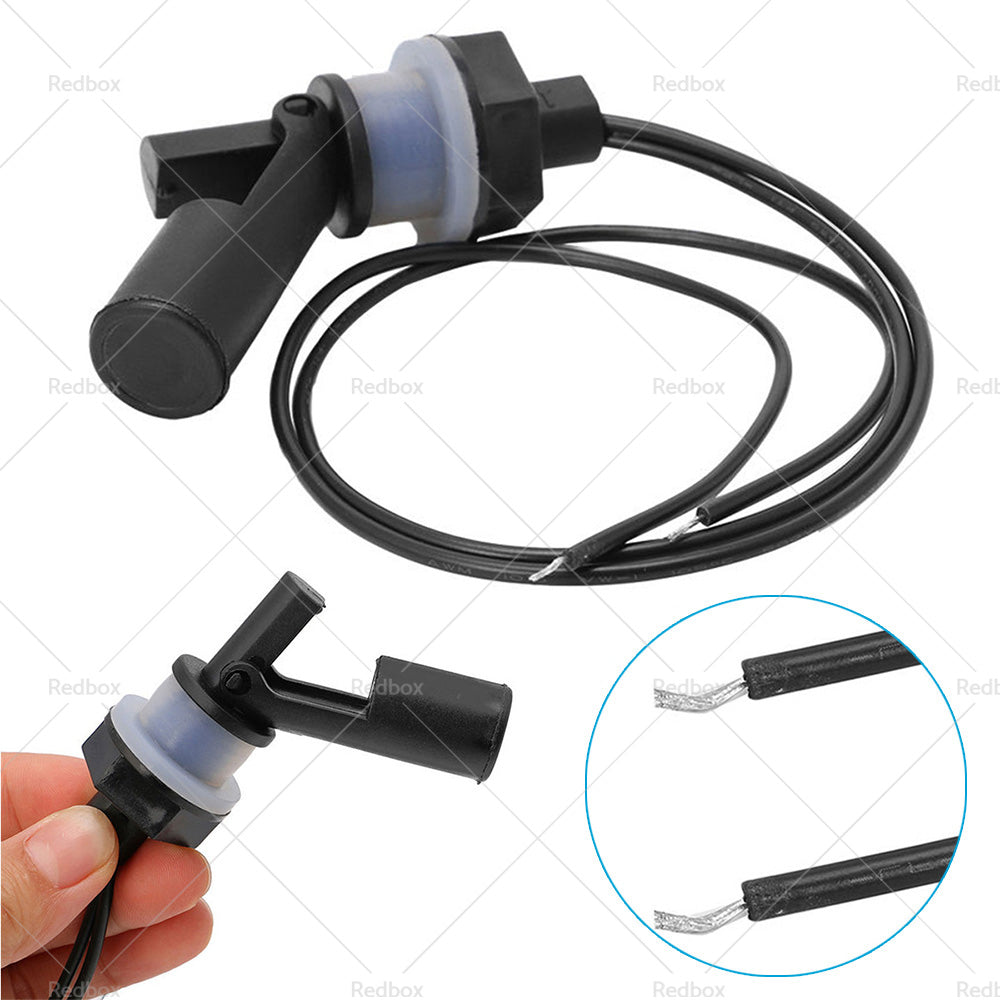

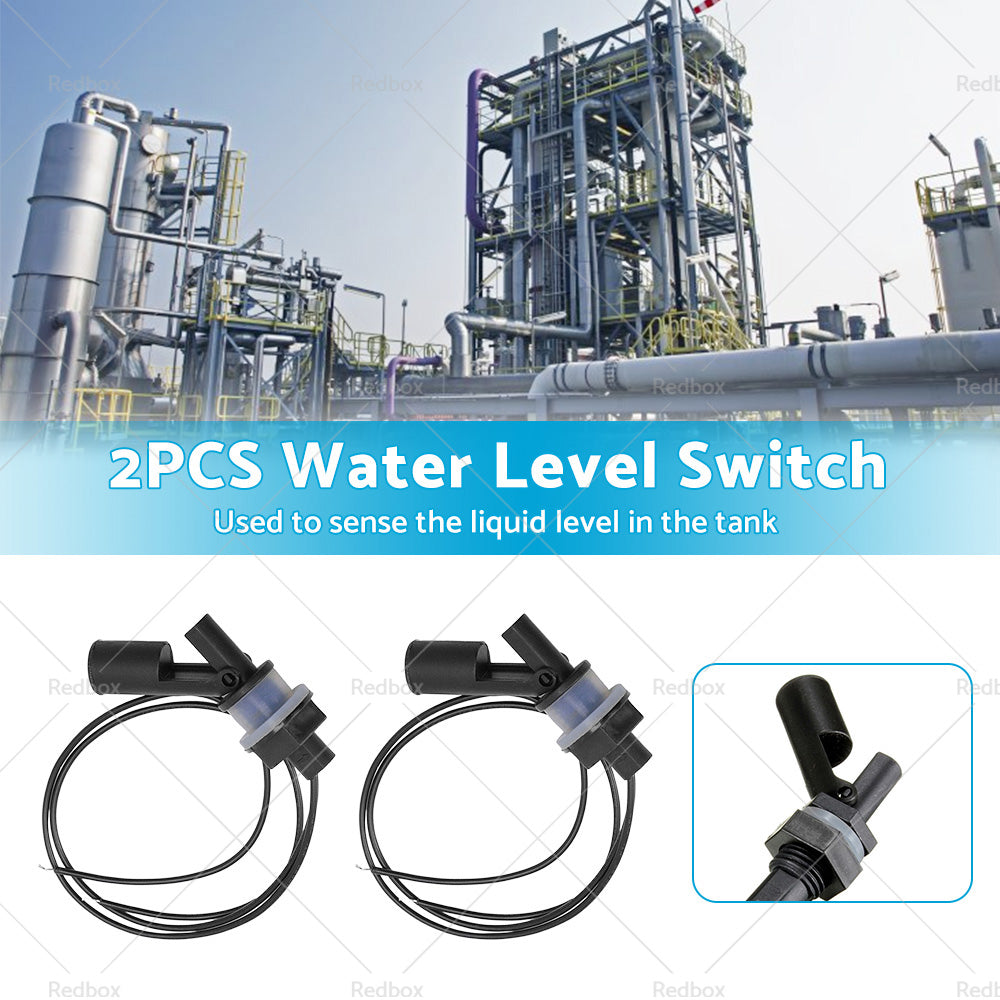

2PCS Water Level Sensor Tube Float Switch Tank Horizontal Liquid Pool Side Mount

Description

Horizontal float sensor switch is installed on the side of liquid level sensor controller, automatic water pump controller, water tank pool.

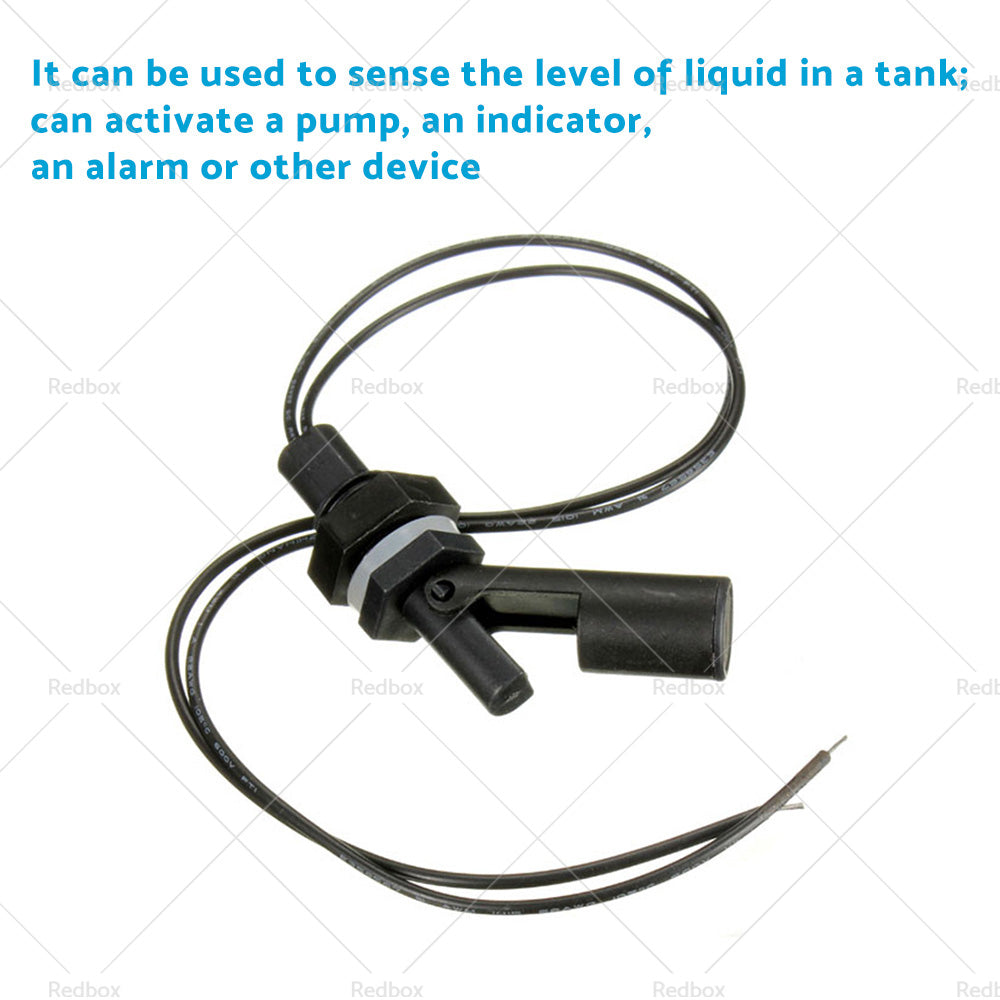

Float switch is a device used to sense the liquid level in the tank. It can activate pumps, indicators, alarms or other devices.

Use them with hydroponics, sea water tanks, fresh water tanks, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating or any of your projects.

Apply to many fields: water treatment, food, medicine, chemical industry, electronics, shipbuilding and other industries.

Does not contain mercury.

Working theory:

One or more reed tubes are mounted in a closed, non-permeable tube.

Then the tube is passed through one or more of the hollow and internally floating magnets.

The rise or fall of the liquid level causes the floating ball to move together, thereby causing the reed switch in the non-permeable tube to be actuated to open or close and output a switching signal.

Specifications

Brand: MAXCOOL

Type: Water Level Switch

Range: 30-500mm

Working voltage: 24V-220V

Temperature rating: -20-85℃

Package include:

2 x Water Level Switchs
