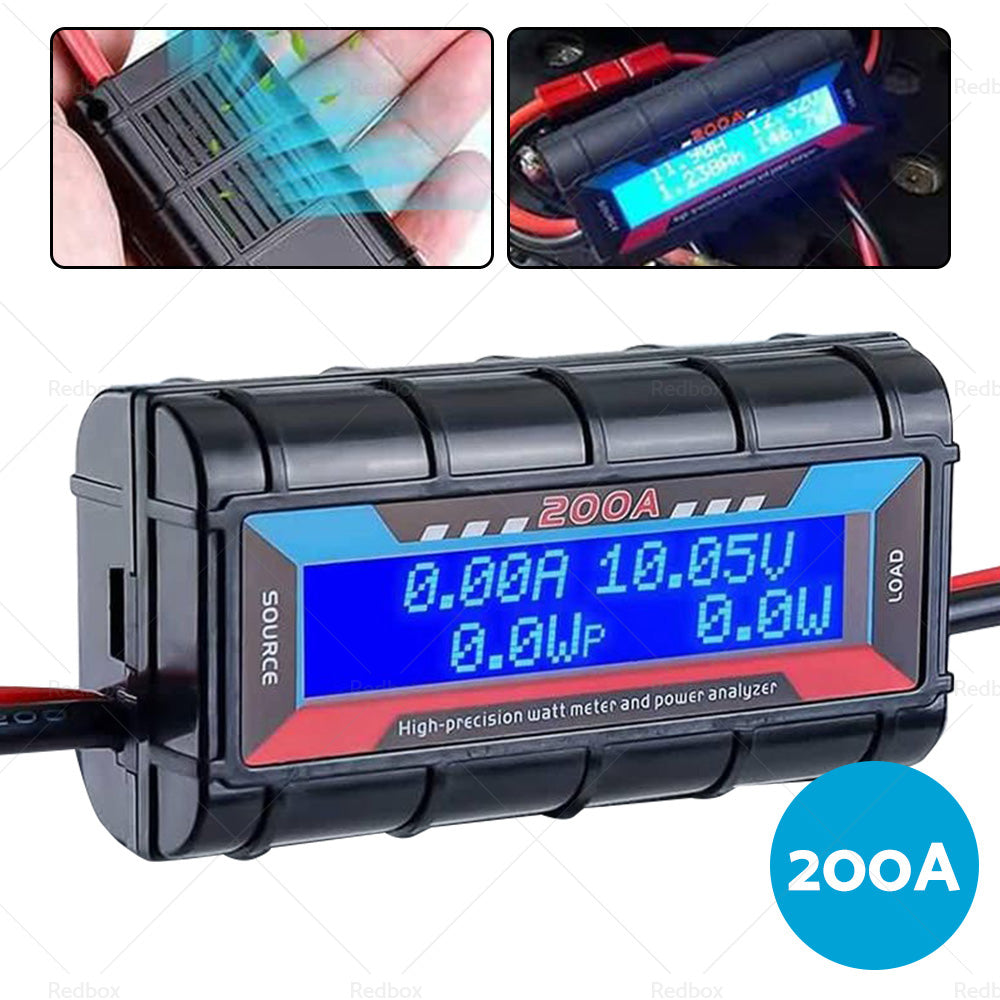

200 Amp Digital Watt Meter Power Analyser Solar Caravan Anderson Style Plug 12V

Features:

These meters can be easily plugged in-line, to measure:Amp Hours (Ah) - Total charge Ah delivered from source to load.

Amp Peak (Ap) - Highest amp value delivered (typically start up cycle for inverters, compressors, fridges etc).

Can also measure Amp (A) - Amps being delivered at that point in time.Voltage - Source voltage, and minimum Source voltage. Power (Watts) - Peak watts, Watts being delivered at that point in time.

Measures 0 to 150A 200A with a resolution of 0.01A (50 Amp connectors for continuous - up to 150A 200A for short peak bursts only)

Clear yellow backlit LCD display.

Operates from 8V to 60V.

Measures 0 to 60V with a resolution of 0.01V.

Measures 0 to 6554W with a resolution of 0.01W.

Measures 0 to 65Ah with a resolution of 0.001Ah.

High quality all-in-one meter.

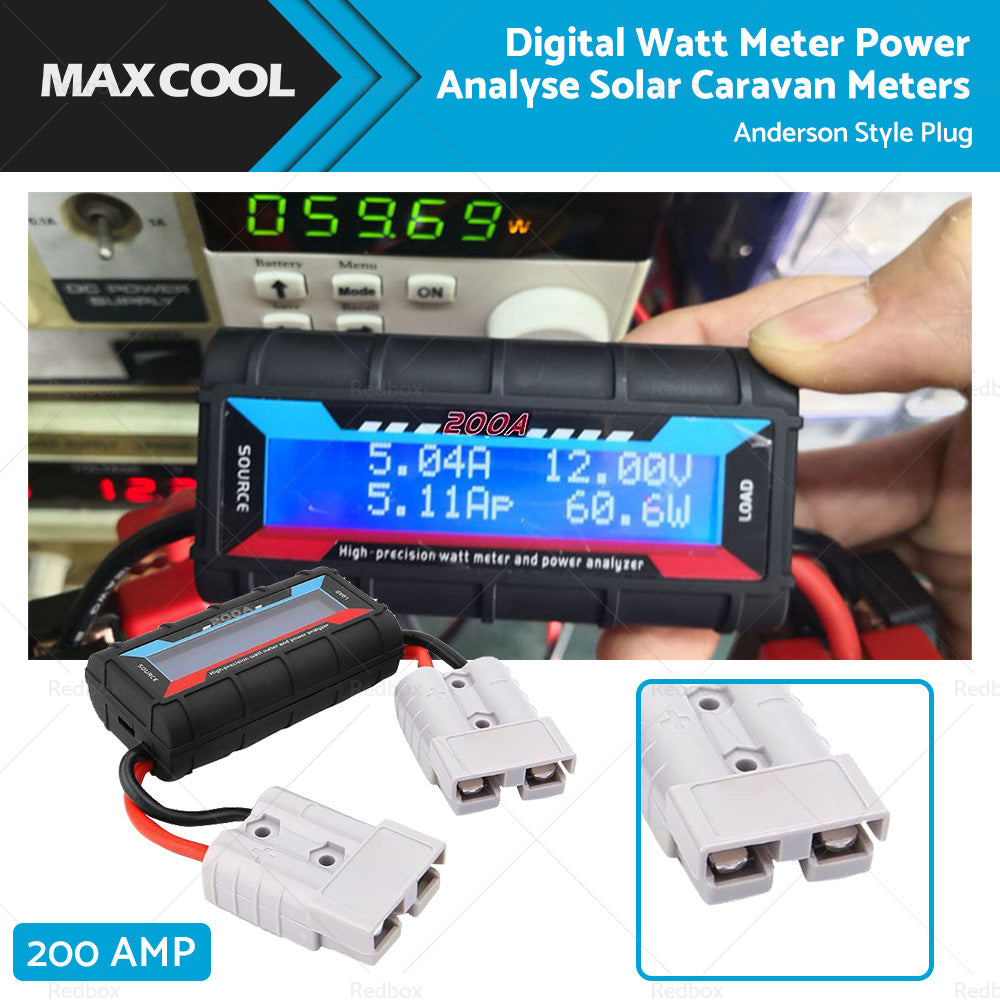

Fitted Anderson Style plugs for easy connecting. (These can be disconnected)

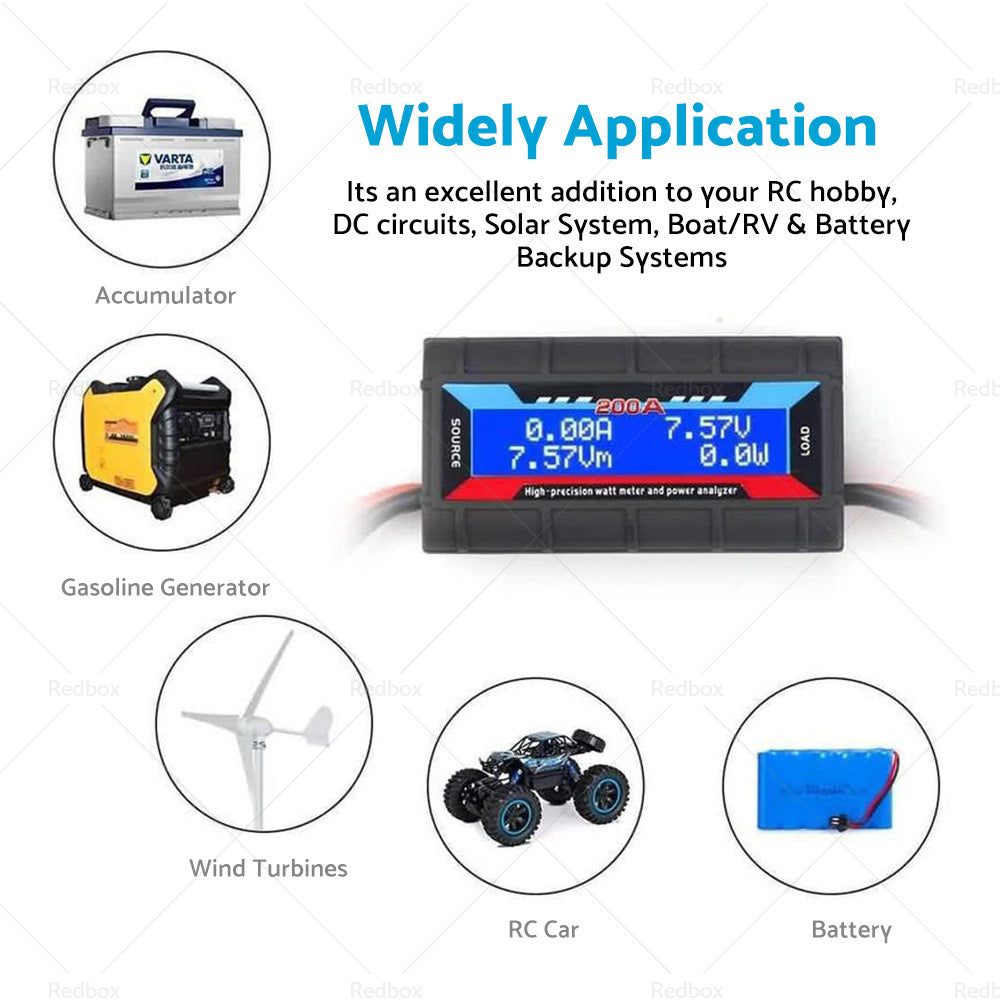

Ideal for the 4x4 and camping enthusiast, Caravans, Solar or other power testing

Microprocessor controlled produces extremely precise and accurate readings.

Specification:

Operating Voltage: 8-60V DC

Type: 200A Max

Housing Material: ABS Plastic

Charging Cycle Readings:
Amp Hours (Ah) – Total charge delivered to the battery
Amp Peak (Ap) – Highest charge delivered to the battery (Bulk charging)
Voltage – Point in time voltage from the Charger (charger is not over or under-charging)

Package Included:

1 x Digital Watt Meter

Note:

Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
